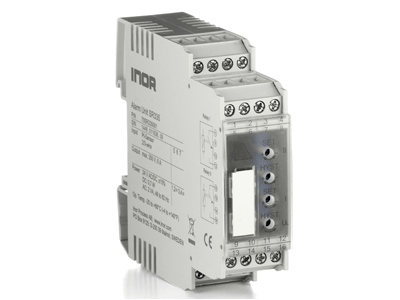

Alarm Unit with Pt100 Input and Double Relay Outputs
SR335 is designed for industrial temperature monitoring with Pt100 sensors in 2- or 3-wire connection.
Two output relays with individually adjustable trip functions are available.
LED’s in the front indicate alarm state and correct power supply.
- Input from Pt100 sensors in 2- or 3-wire connection
- Selectable, pre-calibrated temperature ranges
- Two relay outputs with independent switch functions
- Monostable relays for safe tripping at power failure
- SPDT relays with 6 A switch capacity
- High configuration flexibility with DIP switches
- Trip levels and hysteresis adjustable from the front
- Three front LED’s for trip indication and power supply monitoring
- 4 kV isolation between input, output and power supply
- Protective Separation acc. to EN 50178
- Universal 24 V AC and DC power supply
- DIN-rail mounting
