Industrial Temperature sensors

Temperature is an important parameter in many processes, systems, machines or parts of machines. Temperature variations or drift, but also unwanted temperature differences can considerably influence the performance of a machine or system. Being able to properly measure and control temperature in a process has a positive effect on the service life of machines, ensures fewer downtime and better performance.

Tempcontrol develops and produces temperature sensors based on customer specifications and in standard execution. Please contact our sales department to advise you on the right sensor for your process.

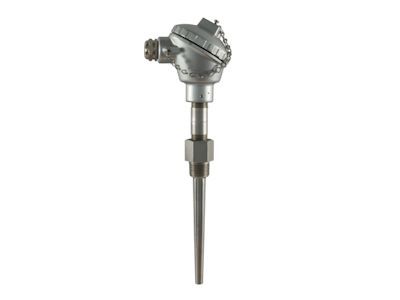

TE/PT-8301 temperature sensor


TE/PT-8301 temperature sensor


Temperature sensor with a great variety of process connections and different thermowells. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8302 temperature sensor


TE/PT-8302 temperature sensor


Temperature sensor with metal protection tube (Ø 15, 22 or 26 mm), or ceramic protection tube (Ø 10, 15, 24 mm). Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8303 temperature sensor


TE/PT-8303 temperature sensor


Temperature sensor for food industry. Complete assembly of stainless steel. Process connection, immersion length and diameters on customer specification. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8304 temperature sensor


TE/PT-8304 temperature sensor


Temperature sensor with Form B-head and process connection, for example 1/2"BSP, diameter and length of the tip as desired. Assemly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8305 temperature sensor


TE/PT-8305 temperature sensor


Temperature sensor with a neck for mounting in processes with high temperatures. Produced on customer specification (diameter, length etc.). Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8306 temperature sensor


TE/PT-8306 temperature sensor



Temperature sensor with welding tube Form D1-2-3-4 or D5 according to DIN 43763, Protection tube Ø 24 mm (tip Ø 12,5 mm) or Ø 30 mm (tip Ø 16 mm). Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8307 temperature sensor


TE/PT-8307 temperature sensor



Temperature sensor with Form B-head, can be supplied with adjustable compression gland and protection tube in different diameters and lengths. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8308 temperature sensor


TE/PT-8308 temperature sensor



Spring loaded measuring insert with single, duplex or more elements. Protection tube can be supplied with different diameters and lengths. Supplied with conventional or mineral insulated cable (vibrations). Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8309 temperature sensor


TE/PT-8309 temperature sensor



Temperature sensor for mounting in diesel engines with protection tube in various diameters and reduced tip as an option. Sensor can be supplied with compression gland. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8310 temperature sensor


TE/PT-8310 temperature sensor



Temperature sensor with Form MA-head with, for example, 1/2"BSP process connection and protection tube in various diameters. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8311 temperature sensor


TE/PT-8311 temperature sensor



Room temperature sensor for indoor measurement with ABS box and for outdoor water resisted with aluminium box. Tip could be perforated or closed. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8312 temperature sensor


TE/PT-8312 temperature sensor



Temperature sensor with a  2- or 3-pole standard connector. Diameter of the protection tube in metric or inch size available. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8313 temperature sensor


TE/PT-8313 temperature sensor



Temperature sensor with a miniature connection head. Protection tube could be produced in different dimensions. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8314 temperature sensor


TE/PT-8314 temperature sensor



Temperature sensor with a 2- till 8-pole connector with gold plated contacts. Length and diameter to be discussed. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8315 temperature sensor


TE/PT-8315 temperature sensor



Temperature sensor with fixed cable and reduced tip. Dimensions on customer specification. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8316 temperature sensor


TE/PT-8316 temperature sensor



Temperature sensor with fixed cable and reduced tip. Dimensions on customer specification. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8317 temperature sensor


TE/PT-8317 temperature sensor



Temperature sensor with flanged and/or barstock thermowell in various combinations (also ATEX approved). Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8318 temperature sensor


TE/PT-8318 temperature sensor



Temperature sensor with FORM BUS-head, process connection as desired, reduced tip and neck. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE-8319 temperature sensor


TE-8319 temperature sensor



"Tube-Temp" temperature sensor for measuring the temperature of tubes with a special "Knife-edge" thermojunction. Assembly suitable only for thermocouples.

Lees verder

TE/PT-8320 temperature sensor


TE/PT-8320 temperature sensor



Temperature sensor with Form BUZ-head, process connection as desired, perforated tip and neck suitable flow temperature measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8321 temperature sensor


TE/PT-8321 temperature sensor



Temperature sensor with bronze connection box (for cold storage rooms) and perforated tip. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8322 temperature sensor


TE/PT-8322 temperature sensor



Temperature sensor with neoprene housing and cable for cold storage applications. Assemly suitable for only resistance thermometers (high accuracy).

Lees verder

TE/PT-8323 temperature sensor


TE/PT-8323 temperature sensor



Robust insertion temperature sensor with chisel point tip for meat and (deep) frozen products. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8324 temperature sensor


TE/PT-8324 temperature sensor



Screw-in temperature sensor with fixed cable and a process connection as desired. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8325 temperature sensor


TE/PT-8325 temperature sensor



Spring loaded measuring insert with transmitter (output 4 - 20 mA, 0 - 10 V or other). Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8326 temperature sensor


TE/PT-8326 temperature sensor



Spring loaded measuring insert suitable for mounting a transmitter. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8327 temperature sensor


TE/PT-8327 temperature sensor



Temperature sensor with 2 x 1/2"NPT connection. Also spring loaded version available. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

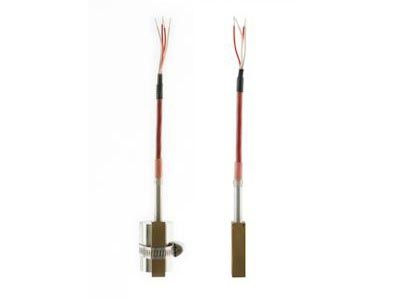

TE/PT-8328 temperature sensor


TE/PT-8328 temperature sensor



Temperature sensor for pipe wall measurement with fixed cable. Housing made of brass, stainless steel, copper or aluminium. Dimensions as desired and radius optional. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

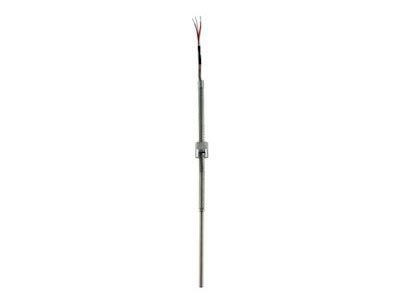

TE/PT-8329 temperature sensor


TE/PT-8329 temperature sensor


Springloaded temperature sensor with bajonet connection and fixed cable. Often used in the plastic industry. Also available with bore point tip. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

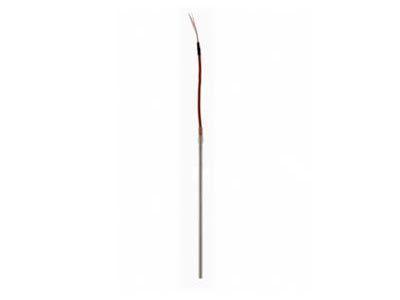

TE/PT-8330 temperature sensor


TE/PT-8330 temperature sensor


Temperature sensor with fixed cable. Dimensions and cable as desired. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8331 temperature sensor


TE/PT-8331 temperature sensor


Temperature sensor with a right angle and fixed cable. Dimensions as desired. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

TE/PT-8332 temperature sensor


TE/PT-8332 temperature sensor


Room temperature sensor suitable for wall mounting. Also available with transmitter. Assembly suitable for resistance thermometers as well as thermocouples.
