Miniature temperature sensors

Miniature temperature sensors are available in thermocouple versions (X series) and as resistance thermometers (P series).

The X series thermocouples are suitable for measuring high temperatures and rapid temperature changes. In addition, due to their construction, they are ideally suited for measuring in harsh conditions. The miniature plug-in temperature sensors are supplied with a mini plug.

The P series resistance thermometers are used where a high degree of accuracy is required. The standard version has a built-in Pt-100/0 ° C measuring resistor with a tolerance according to DIN / IEC 751 class B in a 3-wire connection.

The sensors below are just a small selection of the options. Our sales department can advise you on the right sensor for your process.

Type X1 miniature temperature sensor


Type X1 - surface


Miniature temperature sensor for surface measurement. Assembly suitable only for thermocouples.

Lees verder

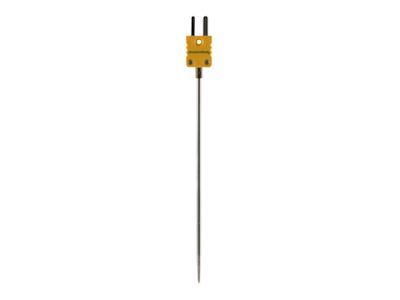

Type X2/P2 miniature temperature sensor


Type X2/P2 - insertion


Miniature temperature sensor for insertion measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

Type X3/P3 miniature temperature sensor


Type X3/P3 - immersion


Miniature temperature sensor for immersion measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

Type X4/P4 miniature temperature sensor


Type X4/P4 - immersion


Miniature temperature sensor for fast response immersion measurement.  Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

Type X5/P5 miniature temperature sensor


Type X5/P5 - air/gas


Miniature temperature sensor for air/gas measurement.  Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

Type X6 miniature temperature sensor


Type X6 - insertion


Miniature temperature sensor for fast response insertion measurement. Assembly suitable only for thermocouples.

Lees verder

Type X7/P7 miniature temperature sensor


Type X7/P7 - surface


Miniature temperature sensor with mounting clips for surface measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Lees verder

Type X8 miniature temperature sensor


Type X8 - soldertip


Miniature temperature sensor for soldertip measurement.  Assembly suitable only for thermocouples.

Lees verder

Type X9 miniature temperature sensor


Type X9 - surface


Miniature temperature sensor with magnet for surface measurement.  Assembly suitable only for thermocouples.

Lees verder

Type X10 miniature temperature sensor


Type X10 - various


Miniature temperature sensor with 1000 mm thermocouple for various measurements. Assembly suitable only for thermocouples.
