Main features
Process inputs:
1 temperature probe input:
- Thermocouples: J, K, R, S,T
- PTC KTY81-121 (990 Ω @ 25 °C)
- NTC 103AT-2 (10KΩ @ 25 °C)
- RTD: Pt100
- Voltage (V): 0..1 V, 0/1...5 V , 0/2...10 V
- Voltage (mV): 0...50 mV, 0...60 mV, 12 ...60 mV
- Current (mA): 0/4...20 mA
- Custom linearisation and IR probes (J.K type)
Overall accuracy: ± (0.5 % span ± 1 digit @25 °C); Tc S: ± (1 % span ± 1 digit @ 25 °C)
1 digital input free voltage
Process outputs:
Up to 4 digital outputs
OUT1: RELAY SPDT, 8A
OUT2: RELAY SPDT, 8A
OUT3/OUT4: RELAY SPST-NO, 5A and SSR Drive
OUT5 (Note1):SSR Drive 0...5Vdc, ±20%, 30 mA max
Power supply:
- 24VDC/VAC
- 100… 240 Vac (50/60 Hz)
Transmitter power supply: 10 V DC (±10%), 20 mA max (Note 1)
Functions:
- ON/OFF control with neutral zone
- PID single action or double action (Heat/Cool) with overshoot control
- Bumpless ramp to set point change
- Start-up delay
- Independent timer with 5 functioning modes (optional)
- Setpoint change from digital inputs
- Digital Setpoint retransmission (Note 2)
- Up to 4 memorized setpoints
- 8 segment programmer with events recovery, 2 events and guaranteed soak (optional)
- Wattmeter for calculating the instantaneous power and energy used
- Counter for days and hours worked with programmable threshold for programmed maintenance
- Compressor protection timer
Autotuning:
- Adaptive Autotuning
- Oscillatory
- Fast
Alarms:
- Up to 3 configurable alarms + loop break alarm
Communication and programming:
Up to 2 simultaneous interfaces
Communication on TTL port to:
- Universal programming key
- Remote display
- RS 485 serial interface with ModBus RTU protocol (optional)
Programming/configuration tools:
- Configurable parameter level “Promotion”
- Configuration software available for PC
Installation:
Mounting method: panel mount
Case dimensions: 35 x 88 mm, h: 88 mm
Connections:
Communication port connection
5 Pole TTL Port

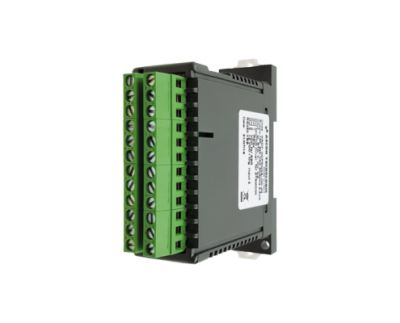

Signals connection
2 lines of 12 poles 2.5 mm² screw terminals block
(Extractable as option)
Connectable to:
- Programming key A01 for PC connection, backup and other functions
- SCADA for monitoring, traceability and remote management
- DX and DY gateways for remote monitoring
