AC3 - Ascon Tecnologic

Multifunction programmable compact controller - Ascon Tecnologic

AC3 is a multiloop process controller, with adjustable operator interface and functionalities, to suit different needs:

• Custom Logo;
• Free pages selection;
• Compact, split or remote versions;
• Expandable

No HMI programming is required. Thanks to a dedicated Function Blocks graphic pages library, it is possible to design, in a flexible manner, the operator interface and manage the variables to be displayed. Create in a simple and intuitive way a solution, unique and “tailor-made” for your customer.

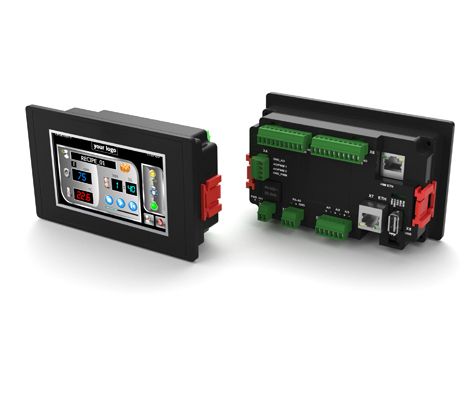

VP4 visual PAC - Ascon Tecnologic

Multifunction programmable controller with integrated HMI - Ascon Tecnologic

It is the ideal solution for the control and automation of each machine, as it integrates:

• a 4.3"graphical operator interface
• a PLC programmable controller
• I/O channels
• management of PID regulations

All available in one compact device.

visualPAC is freely programmable with all 5 IEC 61131-3 languages and has several ready-to-use function block libraries to simplify programming.

Ascon Tecnologic’s control systems include devices that meet the requirements of the national Transition 4.0 plan.
The use of PLCs, the simple and intuitive HMI and the adaptability guaranteed by the PID algorithms are in fact binding requirements.

Being a 'tailor-made' product, it is the ideal solution for repetitive machines with a minimum of quantities.

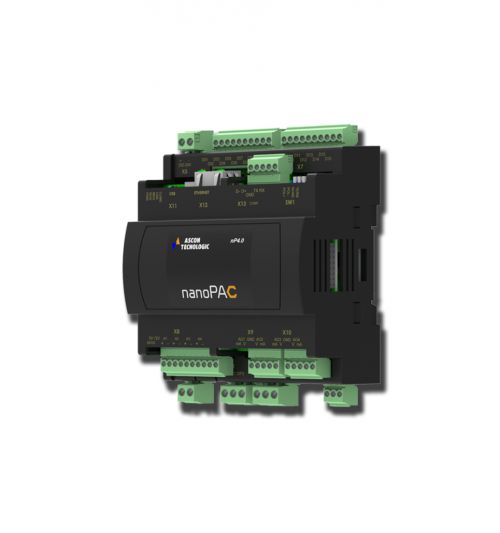

NP4 - Ascon Tecnologic

Super compact multifunction programmable controller - Ascon Tecnologic

Controller under control

• Intuitive: open programming logic and wide availability of pre-existing functional blocks. Freely customizable touch screen operator interface
• Flexible: it allows to realize the best possible solution, expansion modules to increase the number of available resources
• Connected: nanoPAC is 4.0, it connects machines and aligns them with the requirements for incentives and super-amortization, with non-proprietary protocols
• Reliable: training support always guaranteed

EP4 - Ascon Tecnologic

Expansion module for the sigmaPAC family of programmable controllers

It allows to expand the resources available on nP4 and AC3nP, providing additional inputs and outputs:

Inputs:
– 0/4/8 Universal analogue: Configurable 0/1 … 5 V, 0/2 … 10 V, 0/4 … 20 mA, TC (J, K, L, N, R, S, T), PT100 ( 2 wires), PT1000, NTC (103AT-2), Potentiometer, 5V Ratiometric
– 8/16 digital 24 Vdc + 2 digital for fast counting

Output:

– 0/2/4 Analog outputs: configurable 0/1 … 5 V, 0/2 … 10 V, 0/4 … 20 mA
– 8/16 digital 24 Vdc
– 4 Relays/ SSR drive

exCOM - Ascon Tecnologic

CANopen communication module - Ascon Tecnologic

SigmaPAC line
This expansion module allows to add a CANopen Master port to the programmable controllers of the nanoPAC series.

Openpcs - Ascon Tecnologic

IEC 61131-3 Programming software - Ascon Tecnologic

• Programming environment perfectly fulfilling IEC 61131-3 standards
• 6 programming languages
• Wide range of libraries to simplify the programming
