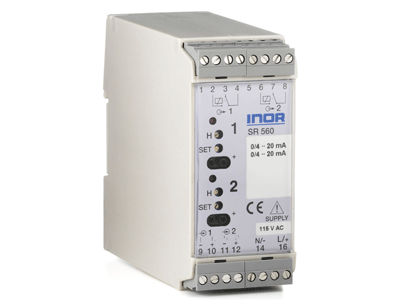

Dual Channel Alarm Unit for mA/V Signals

SR560 is designed for monitoring mA or V signals in the process industry.
The two channels are fully independent.
The SR560 is specially designed for reliable safety triggering without false alarms.

High configuration flexibility allows for adaptation to required alarm functions.

  • Two fully independent isolated channels
  • Current and voltage input
  • Reliable and interference free safety alarm without false alarms
  • High configuration flexibility with solder jumpers
  • Adjustable time delay, hysteresis and relay functions
  • Available for AC or DC power supply
  • DIN-rail mounting
  • Plug-in screw terminals

Main features

  • No. of channels: Two, independent selection of input signal

Input

  • Input Voltage: 0(0,2)-1 V, 0(1)-5 V, 0(2)-10 V
  • Input impedance: 10 MΩ
  • Input Current: 0(4)-20 mA (standard)
  • Input impedance: 51 Ω
  • Maximum input level: 200% of input span

Output

  • Relay 1 & 2: One per channel 1-pole switch over contact
  • Selectable High or Low alarm: Jumpers on PCB (standard: High)
  • Adjustable alarm set-point: Front 15-turn potentiometers / test connectors
  • Selectable alarm delay: 0.4 s (standard) or 2 s, changeable on PCB
  • Adjustable hysteresis: 0.35 % (standard) to 80 % with front 15-turn
  • Selectable normally active or passive function: Jumpers on PCB (standard: normally active)
  • Operation temperature: -20 to +60 °C / -4 to +140 °F

Galvanic isolation

  • AC versions:
    Input to relay outputs: 3 700 VAC, 1 min
    Input to power supply: 3 700 VAC, 1 min
    Relay outputs to power supply: 3 700 VAC, 1 min
    Between channels: 1 500 VAC, 1 min

  • DC version
    Input to relay outputs: 1 500 VAC, 1 min
    Input to power supply: 1 500 VAC, 1 min
    Relay outputs to power supply: 1 500 VAC, 1 min
    Between channels: 1 500 VAC, 1 min

Power supply

  • AC versions:
    230 VAC, -15..+10 %, 45..75 Hz
    115 VAC, -15..+10 %, 45..75 Hz
  • DC version: 19 to 60 VDC
  • Typical accuracy: Trip point ± 0.1 % of span
  • Connections: Plug-in terminals Stranded, ≤ 2.5 mm2, AWG 14
  • Mounting: Rail acc. to DIN EN 50022, 35 mm
  • Inor Process AB
