SR336 alarm unit - Inor

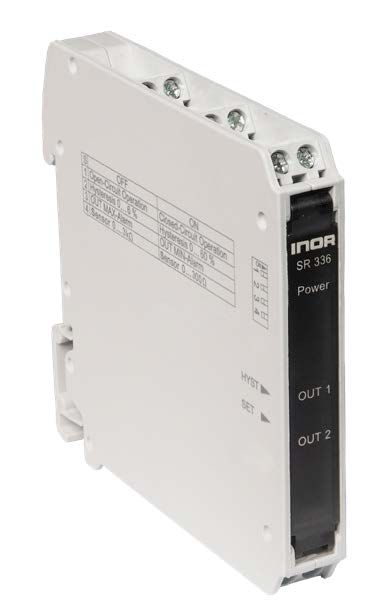

SR336 alarmunit Inor

Alarm unit with RTD input and dual relay outputs

The SR336 is an alarm unit with programmable alarm functions, designed for temperature monitoring with RTD sensors in a 2-wire sensor connection in the process industry.

Two output relays with synchronous switching are available with functions such as MIN/MAX alarm in open or closed circuit. LEDs on the front panel indicate the alarm status and correct power supply.

  • Input from any RTD sensor or resistance signal in 2-wire sensor connection
  • Selectable input ranges 0-300 Ω or 0-3,000 Ω
  • Two relay outputs with synchronous switching and functions
  • Monostable relays for safe shutdown in case of power failure
  • SPDT relay with a switching capacity of up to 6 A
  • The switching point and switching hysteresis are set using potentiometers on the front
  • Relay functions are set using DIP switches on the front
  • Front LEDs for monitoring statuses and power supply monitoring
  • High 4-port isolation
  • Protective separation according to DIN EN 61140 through reinforced insulation according to DIN EN 61010
  • 24 V DC power supply
  • Mounting on a standard 35 mm DIN rail

Main features

Input

  • RTD sensor or resistance: Pt, Ni, Cu, KTY and other RTDs and resistances
  • Input ranges: 0 … 300 Ω / 0 … 3 kΩ (switchable)
  • Sensor connection: 2-wire sensor connection, manual compensation of line resistances required
Output, relays 1 & 2
  • Relay contacts: Two isolated single-pole relays (SPDT), with synchronous switching and functions
  • Contact rating: 250 VAC / 6 A, 1500 VA | 250 VDC / 0.2 A, 115 VDC / 0.3 A, 30 VDC / 6 A
  • Relay function: Monostable, open/closed circuit (selectable with switch)
  • Alarm function: High/low alarm (selectable with switch)
  • Adjustable alarm set point: 0 … 110% of input range (with 12-wire potentiometer)
  • Adjustable hysteresis: 0 to 6% or 0 to 60% of input range (switchable, adjustable with potentiometer)
  • Status indication: Yellow LED
Operating temperature: -20 °C to + 60 °C (-4 to +140 °F)

Galvanic isolation:
  • Input / power supply / relay outputs: Test voltage: 4 kV AC, 50 Hz, 1 min. Operating voltage: 1 kV AC/DC for OVC II, 600 V AC/DC for OVC III according to DIN EN 61010
  • Relay 1 / Relay 2: Test voltage: 3 kV AC, 50 Hz, 1 min. | Operating voltage: 300 V AC/DC
Power supply: 24 V DC, ± 15 %, approx. 0.7 W
Typical accuracy: Switch-off point: < 0.2% full scale
Mounting: 35 mm DIN rail acc to EN 60715
