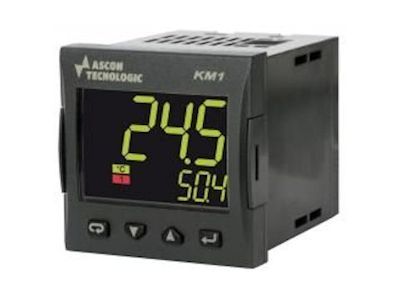

KM1 - Kube series - Ascon Tecnologic

​Controller with independent timer - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

KR1 - Kube series - Ascon Tecnologic

Controller with independent timer - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

KX1 - Kube series - Ascon Tecnologic

Controller with independent timer - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

R38 - Ascon Tecnologic

Entry level controller - Ascon Tecnologic

• Panel mount controller 78 x 35 mm
• 1 Configurable probe input
• Up to 2 outputs
• ON/OFF control and PID single action
• Compressor protection timer
• Available with "Sensitive Touch" and extractable terminal block

TLK43 - TLK series - Ascon Tecnologic

Temperature controller with universal input - Ascon Tecnologic

48x48 mm panel mount controller with dual display, 1 probe input and up to 4 relay outputs
Optionals: 1 digital input (alternative to out 4), current transformer input and RS485 serial port

TLK72 - TLK series - Ascon Tecnologic

Controller with programmable input - Ascon Tecnologic

72x72 mm panel mount controller with single display, 1 probe input and up to 4 digital outputs
Optionals: 1 digital input and RS485 serial port

TLK94 - TLK series - Ascon Tecnologic

Controller with universal input - Ascon Tecnologic

48x96 mm panel mount controller with dual display, 1 probe input and up to 6 relay outputs or 2 analogue outputs and 4 relay outputs
Optionals: Current transformer input, 2 digital inputs and RS485 serial port

TLK96 - TLK series - Ascon Tecnologic

Controller with programmable input - Ascon Tecnologic

96 x 96 mm panel mount controller with single display, 1 probe input and up to 2 outputs

C1 - Gammadue series - Ascon Tecnologic

1/32 DIN controller, indicator, transmitter - Ascon Tecnologic

The Gammadue series C1 line of Ascon is small, easy and complete. Easy configuration and simple operating mode. The smallest line of Gammadue series concentrates the fuinctionality of the temperature controller-indicator-transmitter without loosing the typical characteristics of more complex devices like: auto tune, IP65 front panel protection, serial communications, continuous retransmission output, custom linearisation, and transmitter power supply.

• Panel mount controller, 24 x 48mm
• Configurable input
• Up to 2 digital outputs and 1 analogue output (Retransmission)
• RS 485 ModBus RTU slave serial port
• 1 display, 4 digits

Configurable as:

• Indicator with two alarms
• Transmitter, using 4... 20mA output
• Process controller with digital output

M1 - Gammadue series - Ascon Tecnologic

1/16 DIN controller, indicator, transmitter - Ascon Tecnologic

The Ascon Gammadue M1 serie is flexible, easy and comprehensive. This 48 x 48 size controller is suitable for a wide range of applications. Easy configuration and a simple operating method are merged with the typical characteristics of more complex devices like: autotune, IP65 front panel protection, serial communications, analogue retransmission output, custom linearisation, transmitter power supply, Start-up and Timer special functions.

• Panel mount controller: 48x48 mm
• Configurable input
• Up to 2 digital outputs and 1 analogue output (Retransmission)
• RS 485 ModBus RTU slave serial port
• 1 display, 4 digits

Configurable as:

• Indicator with two alarms
• Transmitter, using 4...20mA output
• Process controller with digital output

X3 - Gammadue series - Ascon Tecnologic

1/8 DIN Double action controller with analogue output - Ascon Tecnologic

The Gammadue series X3 line of Ascon Tecnologic is a double action controller with analogue output. Including Auto/Manual selection and digital inputs for external activation of:

• Stored Setpoints
• Timer function
• Setpoint programmable profile

The Gammadue X3 line is simple, yet is suitable to satisfy almost all control needs:

• Time proportioning
• Analogue
• Single or double action
• Valve drive

Q3 - Gammadue series - Ascon Tecnologic

1/4 DIN Double action controller with analogue output - Ascon Tecnologic

The Gammadue series Q3 line of Ascon Tecnologic is a double action controller with analogue output. Including Auto/Manual selection and digital inputs for external activation of:

• Stored Setpoints
• Timer function
• Setpoint programmable profile

The Gammadue Q3 line is simple, yet is suitable to satisfy almost all control needs:

• Time proportioning
• Analogue
• Single or double action
• Valve drive

D1 - Deltadue series - Ascon Tecnologic

DIN rail mount temperature controller with current transformer - Ascon Tecnologic

The Deltadue modules of Ascon Tecnologic can be either be rear panel or on-machine mounted. This way, control panels can be more compact and distribution on the plant or on the machine can be optimized. The modules are independent. Eachn module can work as a single unit or within a set of modules as a part of a stand-alone control system, or integrated in PLC or PC systems. Integrated into PROFIBUS DP or DeviceNet or CANOpen or Modbus TCP or Modbus RTU is assured by the Gateway modules. User friendly software assists rapid PC configuration of Deltadue.

M2 - Gammadue series - Ascon Tecnologic

1/16 DIN temperature controller for hot runners - Ascon Tecnologic

The Gammadue series M2 line of Ascon Tecnologic is designed to meet the special requirementsop the plastic industry and more specifically of the hot runners applications. Selective set point modification from digital input within a bank of controllers, freezing of the controller output to the most suitable value in case of emergency conditions, momentary target set point visualisation during machine start-up and front key lock are the typical functions required by hot runners machines.

• Panel mount controller: 48x48 mm
• 1 Configurable input, 1 C/T input and 1 digital input
• Up to 3 Digital outputs
• PID single action or double action (Heat/Cool)
• Setpoint change from digital input (optional)
• Outputs at safety value in case of error
• 2 display lines, 4 digits each, green colour

M3 - Gammadue series - Ascon Tecnologic

1/16 DIN heat/cool temperature controller - Ascon Tecnologic

The Ascon Gammadue M3 serie is flexible, easy and comprehensive. This 48 x 48 size controller is suitable for a wide range of applications. The M3 performs Heat/Cool control and provides on auxiliary current transformer input. Easy configuration and a simple operating method are merged with the typical characteristics of more complex devices like: autotune, IP65 front panel protection, serial communications, analogue retransmission output, custom linearisation, transmitter power supply, Start-up and Timer special functions.

• Panel mount controller: 48x48 mm
• 1 Configurable input and 1 C/T input
• Up to 3 Digital outputs and 1 analogue output (Retransmission)
• PID single action or double action (Heat/Cool)
• RS 485 ModBus RTU port (optional)
• 2 display lines, 4 digits each, green colour

M4 - Gammadue series - Ascon Tecnologic

1/16 DIN Double action controller with analogue output - Ascon Tecnologic

The Gammadue series M4 line of Ascon Tecnologic 48 x 48 mm size controller is suitable for a wide range of applications. It performs Heat/Cool control and provides on auxiliary current transformer input. Easy configuration and simple operating method are merged with the typical characteristics of more complex devices like: autotune, IP65 front panel protection, serial communications, analogue control output, Auto/Man, custom linearisation, transmitter power supply, Start-up and Timer special functions.

• Panel mount controller: 48x48 mm
• 1 Configurable input, 1 C/T input and 1 digital input
• Up to 3 Digital outputs and 1 analogue output
• PID single action or double action (Heat/Cool)
• RS 485 ModBus RTU port (optional)
• 2 display lines, 4 digits each, green colour

X1 - Gammadue series - Ascon Tecnologic

1/8 DIN Heat/Cool temperature controller - Ascon Tecnologic

The Gammadue series X1 line of Ascon Tecnologic is ideal for Heat/Cool control, with the capacity to check the load current by current transformer. Three relay outputs (one SPDT) and an analogue retransmission output, powerful Timer and Start-up special functions. This controller, the simplest of the gammadue 48x96 series, is a very cost-effective instrument allowing you to buy only what you really need to satisfy your requirements.

• Panel mount controller: 48 x 96 mm
• 1 Configurable input
• 1 optional auxiliary input
• Up to 4 digital outputs
• 1 optional analogue output
• ON/OFF , PID single or double action with
     *  Start-up + Timer (optional)
     *  Remote setpoint
     *  2 memorized setpoints
• RS 485 ModBus RTU slave serial port
• 2 Display lines:
     *  4 digits (PV) h: 12 mm
     *  4 digits (SP) h: 9 mm
     *  Green colour

Q1 - Gammadue series - Ascon Tecnoloigc

1/4 DIN Heat/Cool temperature controller - Ascon Tecnologic

The Gammadue series Q1 line of Ascon Tecnologic is a Heat-Cool temperature controller. Ideal for Heat/Cool control, with the capability to check the load current by current transformer. Three relay outputs (one SPDT) and an analogue retransmission output, powerful Timer and Start-up special functions. The Q1 line, the simplest of the gammadue 96x96 series, is a very cost-effective instrument allowing you to buy only what you really need to satisfy your requirements.

• Panel mount controller: 96 x 96 mm
• 1 Configurable input
• 1 optional auxiliary input
• Up to 4 digital outputs
• 1 optional analogue output
• ON/OFF , PID single or double action
• RS 485 ModBus RTU slave serial port
• 2 Display lines

D2 - Deltadue series - Ascon Tecnologic

Dual insulated loops DIN rail mount temperature controller - Ascon Tecnologic

The Deltadue modules of Ascon Tecnologic can be either be rear panel or on-machine mounted. This way, control panels can be more compact and distribution on the plant or on the machine can be optimized. The modules are independent. Eachn module can work as a single unit or within a set of modules as a part of a stand-alone control system, or integrated in PLC or PC systems. Integrated into PROFIBUS DP or DeviceNet or CANOpen or Modbus TCP or Modbus RTU is assured by the Gateway modules. User friendly software assists rapid PC configuration of Deltadue.

D3 - Deltadue series - Ascon Tecnologic

DIN rail mount double action controller with analogue output - Ascon Tecnologic

The Deltadue modules of Ascon Tecnologic can be either be rear panel or on-machine mounted. This way, control panels can be more compact and distribution on the plant or on the machine can be optimized. The modules are independent. Eachn module can work as a single unit or within a set of modules as a part of a stand-alone control system, or integrated in PLC or PC systems. Integrated into PROFIBUS DP or DeviceNet or CANOpen or Modbus TCP or Modbus RTU is assured by the Gateway modules. User friendly software assists rapid PC configuration of Deltadue.

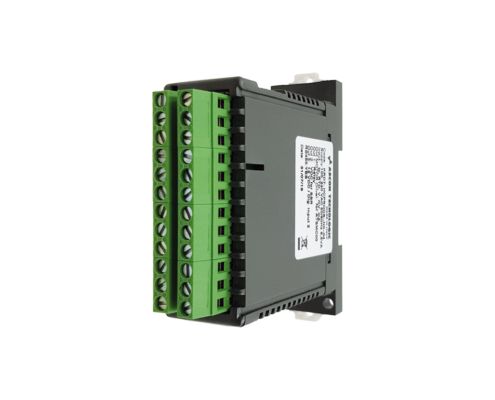

K30 - Ascon Tecnologic

DIN RAIL mount mini-programmer controller - Ascon Tecnologic

• Controller with independent timer
• 8 segment programmer
• Wattmeter function

K85 - Ascon Tecnologic

4 modules DIN Rail mount mini-programmer controller - Ascon Tecnologic

• Controller with independent timer
• 8 segments programmer
• Wattmeter function

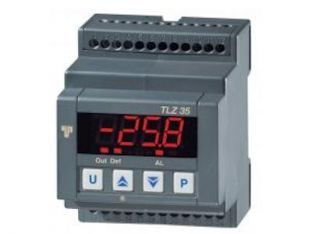

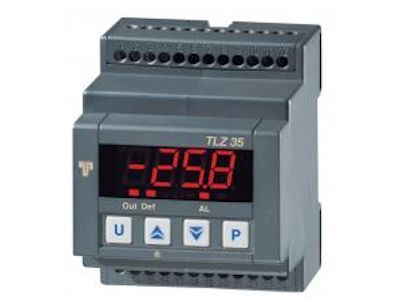

TLZ35 - Ascon Tecnologic

DIN rail mount digital thermostat with defrost - Ascon Tecnologic

• Thermostat
• 1 input and up to 2 outputs

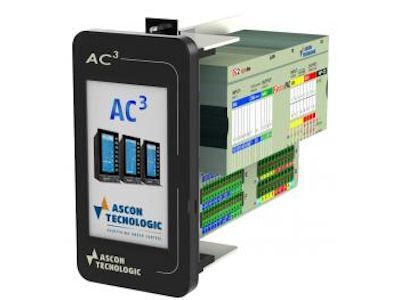

AC3 - Ascon Tecnologic

Multifunction programmable compact controller - Ascon Tecnologic

AC3 is a multiloop process controller, with adjustable operator interface and functionalities, to suit different needs:

• Custom Logo;
• Free pages selection;
• Compact, split or remote versions;
• Expandable

No HMI programming is required. Thanks to a dedicated Function Blocks graphic pages library, it is possible to design, in a flexible manner, the operator interface and manage the variables to be displayed. Create in a simple and intuitive way a solution, unique and “tailor-made” for your customer.

VP4 visual PAC - Ascon Tecnologic

Multifunction programmable controller with integrated HMI - Ascon Tecnologic

It is the ideal solution for the control and automation of each machine, as it integrates:

• a 4.3"graphical operator interface
• a PLC programmable controller
• I/O channels
• management of PID regulations

All available in one compact device.

visualPAC is freely programmable with all 5 IEC 61131-3 languages and has several ready-to-use function block libraries to simplify programming.

Ascon Tecnologic’s control systems include devices that meet the requirements of the national Transition 4.0 plan.
The use of PLCs, the simple and intuitive HMI and the adaptability guaranteed by the PID algorithms are in fact binding requirements.

Being a 'tailor-made' product, it is the ideal solution for repetitive machines with a minimum of quantities.

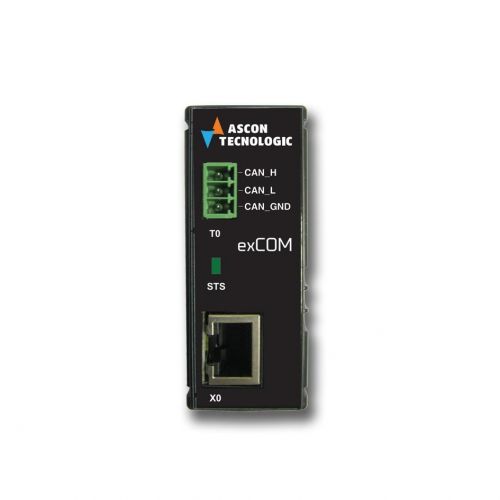

exCOM - Ascon Tecnologic

CANopen communication module - Ascon Tecnologic

SigmaPAC line
This expansion module allows to add a CANopen Master port to the programmable controllers of the nanoPAC series.

NP4 - Ascon Tecnologic

Super compact multifunction programmable controller - Ascon Tecnologic

Controller under control

• Intuitive: open programming logic and wide availability of pre-existing functional blocks. Freely customizable touch screen operator interface
• Flexible: it allows to realize the best possible solution, expansion modules to increase the number of available resources
• Connected: nanoPAC is 4.0, it connects machines and aligns them with the requirements for incentives and super-amortization, with non-proprietary protocols
• Reliable: training support always guaranteed

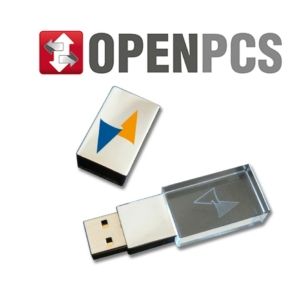

Openpcs - Ascon Tecnologic

IEC 61131-3 Programming software - Ascon Tecnologic

• Programming environment perfectly fulfilling IEC 61131-3 standards
• 6 programming languages
• Wide range of libraries to simplify the programming

E51A - Ascon Tecnologic

Thermostat – Ascon Tecnologic

The model E51A is a digital electronic temperature controller that is typically used in cooling applications with ON/O FF control mode. The instrument has one relay output and one input for PTC or NTC temperature probes.

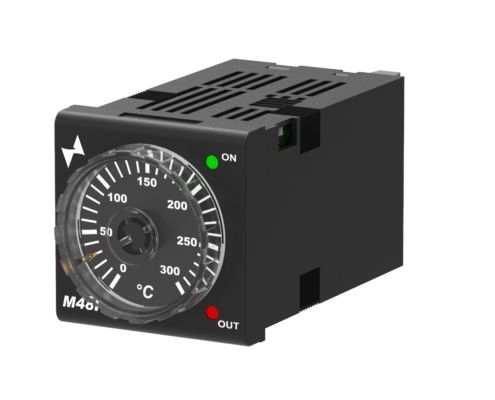

M48I - Ascon Tecnologic

Analogue temperature controller – Ascon Tecnologic

• Analogue controller
• On/off and PD control
• Ranges from 100 °C to 1200 °C

TLZ35 - TLZ series - Ascon Tecnologic

DIN rail mount digital thermostat with defrost – Ascon Tecnologic

The model TLZ35 is a digital controller with microprocessor that is typically used in cooling applications that have temperature control with ON/OFF regulation and defrosting control with set time by means of stopping compressor. The instrument has up to 2 relay outputs, one input for PTC or NTC temperature probes and a digital input, that can be configured. The 2 outputs can be used for controlling the compressor or the temperature control device (OUT) and an alarm (AL). The instrument is equipped with 4 programme keys, a 4-digit display and 3 LED signals, in addition to an internal buzzer that is the sound system for alarms. Other important characteristics of the instrument are: programme parameters protection using personalised password, switching on and off (stand-by) of the instrument using the “U” front key, configuration of parameters via the KEY 01 device and the possibility of power supply in the range 100 ... 240 VAC.

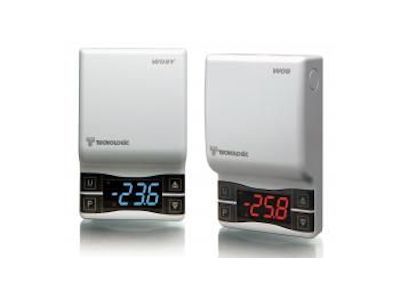

W09 - Ascon Tecnoloigc

Wall mount thermostat – Ascon Tecnologic

The model W09 is a digital electronic thermocontroller that is typically used in cooling applications that have temperature control with ON/OFF mode and defrosting control with intervals time by stopping compressor. The instrument has one relay output and one input for PTC or NTC temperature probes, in addition can be equipped with an internal buzzer that is the sound system for alarms.

Z31A - Ascon Tecnologic

Digital electronic thermostat – Ascon Tecnologic

• 1 probe input, 1 relay output and buzzer
• Available with "Sensitive Touch" and extractable terminal block

The model Z31A is a digital electronic thermocontroller that is typically used in cooling applications that have temperature control with ON/OFF mode and defrosting control with intervals time by stopping compressor. The instrument has one relay output and one input for PTC or NTC temperature probes in addition can be equipped with an internal buzzer that is the sound system for alarms.

AC3 - Ascon Tecnologic

Multifunction programmable compact controller - Ascon Tecnologic

AC3 is a multiloop process controller, with adjustable operator interface and functionalities, to suit different needs:

• Custom Logo
• Free pages selection
• Compact, split or remote versions
• Expandable

No HMI programming is required. Thanks to a dedicated Function Blocks graphic pages library, it is possible to design, in a flexible manner, the operator interface and manage the variables to be displayed. Create in a simple and intuitive way a solution, unique and “tailor-made” for your customer.

KM3 - Kube - Ascon Tecnologic

Controller, programmer with independent timer - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

KM5 - Kube - Ascon Tecnologic

Controller programmer, with 8 programs and 96 segments - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

KR3 - Kube - Ascon Tecnologic

Controller, programmer with independent timer - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

KRD3 - Kube - Ascon Tecnologic

Controller, programmer with independent timer - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

KR5 - Kube - Ascon Tecnologic

Controller programmer, with 8 programs and 96 segments - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

KX3 - Kube - Ascon Tecnologic

Controller, programmer with independent timer - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

KX5 - Kube - Ascon Tecnologic

Controller programmer, with 8 programs and 96 segments - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

KX6 - Kube - Ascon Tecnologic

Servomotor controller - Ascon Tecnologic

The KUBE Series of AsconTecnologic is a range of user-friendly and cost-effective controllers. The controllers are equipped with EVO green for energy saving, VO tune for auto-tune PID parameters "push and forget" and EVO tools for configuration with codes for quick start and programming key for instant parameterisation.

K30 - K series - Ascon Tecnologic

DIN RAIL mount mini-programmer controller - Ascon Tecnologic

• Controller with independent timer
• 8 segment programmer
• Wattmeter function

K31 - K series - Ascon Tecnologic

Mini-programmer controller - Ascon Tecnologic

• Panel mount controller 78 x 35 mm
• 1 Configurable probe input
• 2 digital inputs
• Up to 5 digital outputs
• PID controller with:
  • Independent timer (optional)
  • 8 segment programmer (optional)
  • Wattmeter
  • Counter for worked days and hours
  • Compressor protection timer
• TTL or RS485 Modbus-RTU ports
• 1 display line, 4 digit, h 12 mm, red colour

K32 - K series - Ascon Tecnologic

Dual Display mini-programmer controller - Ascon Tecnologic

• Panel mount controller 78 x 35 mm
• Available with "Sensitive Touch" keyboard
• 1 Configurable probe input
• 2 digital inputs
• Up to 4 digital outputs
• PID controller with:
  • Independent timer
  • 8 segment programmer (optional)
  • Wattmeter
  • Counter for worked days and hours
  • Compressor protection timer
• TTL or RS485 Modbus-RTU ports
• 2 display lines, 4 digit, h 7 mm, red and green colour

K38 - K series - Ascon Tecnologic

Mini-programmer controller - Ascon Tecnologic

• Panel mount controller 78 x 35 mm
• 1 Configurable probe input
• Up to 2 outputs
• PID controller with:
  • Independent timer (optional)
  • 8 segment programmer (optional)
  • Wattmeter
  • Counter for worked days and hours
  • Compressor protection timer
• TTL port
• 1 display line, 4 digit, h 12 mm, red or blue colour

K39 - K series - Ascon Tecnologic

Dual display mini-programmer controller - Ascon Tecnologic

• Panel mount controller 78 x 35 mm
• 1 Configurable probe input
• Up to 2 outputs
• PID controller with:
  • Independent timer (optional)
  • 8 segment programmer (optional)
  • Wattmeter
  • Counter for worked days and hours
  • Compressor protection timer
• TTL port
• 2 display lines, 4 digit, h 7 mm, red and green colour

K48 - K series - Ascon Tecnologic

Mini-programmer controller - Ascon Tecnologic

• Panel mount controller 48x48 mm
• 1 Configurable probe input
• Up to 3 digital outputs
• PID controller with:
  • Independent timer (optional)
  • 8 segment programmer (optional)
  • Wattmeter
  • Counter for worked days and hours
  • Compressor protection timer
• TTL port
• 1 display line, 4 digit, h 12 mm, red or blue colour

K49 - K series - Ascon Tecnologic

Dual Display mini-programmer controller - Ascon Tecnologic

• Panel mount controller 48x48 mm
• 1 Configurable probe input
• Up to 3 outputs
• PID controller with:
  • Independent timer (optional)
  • 8 segment programmer (optional)
  • Wattmeter
  • Counter for worked days and hours
  • Compressor protection timer
• TTL port
• 2 display lines, 4 digit, h 7 mm, red and green colour

K85 - K series - Ascon Tecnologic

4 modules DIN Rail mount mini-programmer controller - Ascon Technologic


• Controller with independent timer
• 8 segments programmer
• Wattmeter function

M5 - Gammadue - Ascon Tecnologic

1/16 DIN Process controller setpoint programmer - Ascon Tecnologic

The process controllers of the M5 series have been designed for the industrial environment. They are provided with a complete set of functions, as a true universal instrument. The M5 series can be used as controllers / programmers with 1 setpoint profile of 16 segments.

• Panel mount controller 48x48 mm
• 1 Configurable input, 1 auxiliary input and 2 digital inputs
• Up to 3 Digital outputs and 1 analogue output
• PID single action or double action (Heat/Cool)
• Floating servomotor
• 16 segment programmer (optional)
• RS 485 ModBus RTU port (optional)
• 2 display lines, 4 digits each, green colour

X5 - Gammadue - Ascon Tecnologic

1/8 DIN Process controller with PROFIBUS DP and Modbus RTU Master/Slave - Ascon Tecnologic

By its three different kinds of serial communciations, Profibus DP Slave, Modbus Master and Modbus Slave, the Gammadue X5 line can interface on different levels with other devices, by exchanging informations after processing them by mathematical package. The frequency input, added to the tradional inputs, two retransmission or control analogue outputs and four programs, allow you to use the X5 for the most diversified control strategies.

Q5 - Gammadue - Ascon Tecnologic

1/4 DIN Process controller with PROFIBUS DP and Modbus RTU Master/Slave - Ascon Tecnologic

By its three different kinds of serial communciations, Profibus DP Slave, Modbus Master and Modbus Slave, the Gammadue Q5 line can interface on different levels with other devices, by exchanging informations after processing them by mathematical package. The frequency input, added to the tradional inputs, two retransmission or control analogue outputs and four programs, allow you to use the Q5 for the most diversified control strategies.

Novasens 2000 - Infrared Hot Melt Controller

Novasens 2000 - Infrared Hot Melt Controller


With the Adhesive controller novasens 2000 you can monitor contact-less coating orders with hot glue, hot melt and hot wax.

The Hotmeltcontroller novasens 2000 converts the non-contact measured quantity of the adhesive application in to an electrical signal. The output is measured as an analog output signal in either 0-20mA, 4-20mA or 0-10 volts for transmission and evaluation in to the SPS or in to an digital LED display (optional).
The optional digital display novasens DP1001 allows switching on adjustable switch contacts and the establishment MIN and MAX values to process the measured values without SPS.

With different sensors you can monitor adhesive beads and adhesive points, adhesive joints of different size and shape.
The tough small micro sensors process in quick response time (from 5 ms) also high speed tasks.With their small installation size you can also place the adhesive sensors in confined spaces.

EP4 - Ascon Tecnologic

Expansion module for the sigmaPAC family of programmable controllers

It allows to expand the resources available on nP4 and AC3nP, providing additional inputs and outputs:

Inputs:
– 0/4/8 Universal analogue: Configurable 0/1 … 5 V, 0/2 … 10 V, 0/4 … 20 mA, TC (J, K, L, N, R, S, T), PT100 ( 2 wires), PT1000, NTC (103AT-2), Potentiometer, 5V Ratiometric
– 8/16 digital 24 Vdc + 2 digital for fast counting

Output:

– 0/2/4 Analog outputs: configurable 0/1 … 5 V, 0/2 … 10 V, 0/4 … 20 mA
– 8/16 digital 24 Vdc
– 4 Relays/ SSR drive

Novasens 2050 - infrared temperature controller

Novasens 2050 - infrared temperature controller


The novasens 2050 infrared temperature measurement system is a very fast non-contact measuring system which standard outputs are combined with temperature controllers, temperature gauges and automatic controls.
Through a variety of configuration options the novasens 2050 can be adapted to individual measurement tasks.

Why non-contact temperature measurement?
The non-contact temperature measurement with the infrared temperature measurement system novasens 2050 offers an advantage in situations in which it is difficult to achieve it with contact probes, and is more of a hindrance, or other temperature measurement methods to be inaccurate.

How it works:
The novasens infrared thermometer converts the contact-less measured temperature of the object into an electrical signal.
The output is issued as an analog output signal in either 0-20mA, 4-20mA or 0-10 volts for transmission and evaluation of the SPS or as a digital LED display (optional).
The optional digital display novasens DP1001 allows switching on adjustable switch contacts and the establishment of MIN and MAX values to process the measured values without SPS.

For an individual configuration of the novasens 2050 pyrometer, the following options are available:

• Relay contact for over and under temperature
• Adjustable integration time (measuring sedation)
• Trigger Input: 24 VDC with hold function for holding a temperature value

The novasens pyrometer can be used universally in the temperature range from -40°C to +1000°C and can be individually configured with interchangeable sensors for various applications. The special temperature ranges 0-30°C, 0°-50°C, -40° to +60°C, -20°C to +60°C provide a high measurement resolution and sensitivity in the food industry and in laboratories.

Advantages of the novasens 2050:

• Manually adjustable emissivity correction
• Sensor and controller unit easy replaceable via plug connector
• Small size of the sensors allow a use in confined areas
• Tough sensors for heavy industrial applications
• Temperature ranges and outputs selectable by DIP switch
• Extension of the sensor cable up to 40m
• Unit in aluminium housing or as build-in circuit board

SR361 alarm unit - Inor

Alarm Unit with Current and Voltage Input and Double Relay Outputs

SR361 is designed for monitoring current and voltage signals in the process industry.
Two output relays with individually adjustable trip functions are available.
LED’s in the front indicate alarm state and correct power supply.

• Current and voltage input
• Direct connection to 2-wire transmitters with built-in supply
• Two relay outputs with independent switch functions
• Monostable relays for safe tripping at power failure
• SPDT relays with 6 A switch capacity
• High configuration flexibility with DIP switches
• Trip levels and hysteresis adjustable from the front
• Three front LED’s for trip indication and power supply monitoring
• 4 kV isolation between input, output and power supply
• Protective Separation acc. to EN 61010
• 24 V DC power supply
• DIN-rail mounting

SR360 alarm unit - Inor

Alarm Unit with Current and Voltage Input and Double Relay Outputs

SR360 is designed for monitoring current and voltage signals in the process industry.
Two output relays with individually adjustable trip functions are available.
LED’s in the front indicate alarm state and correct power supply.

• Current and voltage input
• Two relay outputs with independent switch functions
• Monostable relays for safe tripping at power failure
• SPDT relays with 6 A switch capacity
• High configuration flexibility with DIP switches
• Trip levels and hysteresis adjustable from the front
• Three front LED’s for trip indication and power supply monitoring
• 4 kV isolation between input, output and power supply
• Protective Separation acc. to EN 50178
• Universal 24 V AC and DC power supply
• DIN-rail mounting

SR535 alarm unit - Inor

Alarm Unit with Pt100 Input and 4-20 mA Output

SR535 is designed for monitoring Pt100 signals in the process industry.
The unit gives alarm functions for either increasing or decreasing temperatures and for certain error states.

SR535 provides a temperature linear output signal, 4-20 mA, corresponding to the measurement range.

• Direct Pt100 input
• 4-20 mA output
• One temperature monitoring relay
• One error monitoring relay
• Reliable and interference free safety alarm without false alarms
• High configuration flexibility with solder jumpers
• Adjustable time delay, hysteresis and relay functions
• Available for AC or DC power supply
• DIN-rail mounting
• Plug-in screw terminals

SR560 alarm unit - Inor

Dual Channel Alarm Unit for mA/V Signals

SR560 is designed for monitoring mA or V signals in the process industry.
The two channels are fully independent.
The SR560 is specially designed for reliable safety triggering without false alarms.

High configuration flexibility allows for adaptation to required alarm functions.

• Two fully independent isolated channels
• Current and voltage input
• Reliable and interference free safety alarm without false alarms
• High configuration flexibility with solder jumpers
• Adjustable time delay, hysteresis and relay functions
• Available for AC or DC power supply
• DIN-rail mounting
• Plug-in screw terminals

ME544 power supply - Inor

4-channel Power Supply for 2-wire Transmitters

ME544 has four galvanically isolated supply channels for 2-wire transmitters.
The output voltage for each channel is 25 VDC.
Each channel is short-circuit protected and has a current limitation to protect measurement circuits from damage caused by short circuits or other faults.
ME544 cuts the risk for measurement errors caused by earth potential differences with a number of 2-wire transmitters in the same measurement system.

• 4 galvanically isolated supply channels for 2-wire transmitters
• 25 V stabilized supply voltage
• Short-circuit safe
• Current limited to ~35 mA
• Available for AC or DC power supply
• Compact mounting on DIN rail
• Plug-in screw terminals
