Metal protective wrap - Weidmann

Metal protective wrap - Weidmann

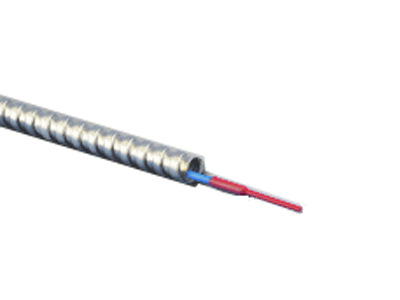

The metal protective hose is made of a spiral-wound stainless steel tube. Due to his construction he is extremely robust and corrosion resistant. Therefore he provides to our fiber optic sensors a comprehensive protection at temperatures from -100°C to +200°C.

The protective tube is due to his small outer diameter of only 5mm very flexible. He is well-suited for any applications in the medical, pharmaceutical or industrial areas.

  • High flexibility
  • High tensile strength (500N)
  • Crush-resistant (750N)
  • Rotationally fixed
  • Light and liquid tight

Main features

  • Temperature range: -100°C to +200°C
  • Material: Stainless steel flexible
  • Color: Metal
  • Bending radius: rmin = 21mm
  • Diameter inside: 3.6mm; outer: 5mm
  • Weidmann Technologies Deutschland GmbH
