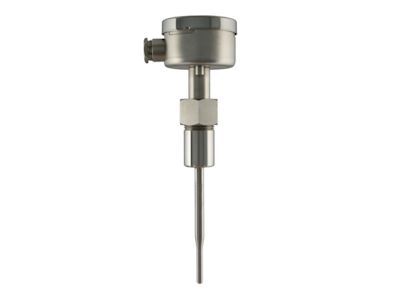

TE/PT-8301 temperature sensor

TE/PT-8301 temperature sensor

Temperature sensor with a great variety of process connections and different thermowells. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8302 temperature sensor

TE/PT-8302 temperature sensor


Temperature sensor with metal protection tube (Ø 15, 22 or 26 mm), or ceramic protection tube (Ø 10, 15, 24 mm). Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8303 temperature sensor

TE/PT-8303 temperature sensor


Temperature sensor for food industry. Complete assembly of stainless steel. Process connection, immersion length and diameters on customer specification. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8304 temperature sensor

TE/PT-8304 temperature sensor


Temperature sensor with Form B-head and process connection, for example 1/2"BSP, diameter and length of the tip as desired. Assemly suitable for resistance thermometers as well as thermocouples.

TE/PT-8305 temperature sensor

TE/PT-8305 temperature sensor


Temperature sensor with a neck for mounting in processes with high temperatures. Produced on customer specification (diameter, length etc.). Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8306 temperature sensor

TE/PT-8306 temperature sensor

Temperature sensor with welding tube Form D1-2-3-4 or D5 according to DIN 43763, Protection tube Ø 24 mm (tip Ø 12,5 mm) or Ø 30 mm (tip Ø 16 mm). Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8307 temperature sensor

TE/PT-8307 temperature sensor

Temperature sensor with Form B-head, can be supplied with adjustable compression gland and protection tube in different diameters and lengths. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8308 temperature sensor

TE/PT-8308 temperature sensor

Spring loaded measuring insert with single, duplex or more elements. Protection tube can be supplied with different diameters and lengths. Supplied with conventional or mineral insulated cable (vibrations). Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8309 temperature sensor

TE/PT-8309 temperature sensor

Temperature sensor for mounting in diesel engines with protection tube in various diameters and reduced tip as an option. Sensor can be supplied with compression gland. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8310 temperature sensor

TE/PT-8310 temperature sensor

Temperature sensor with Form MA-head with, for example, 1/2"BSP process connection and protection tube in various diameters. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8311 temperature sensor

TE/PT-8311 temperature sensor

Room temperature sensor for indoor measurement with ABS box and for outdoor water resisted with aluminium box. Tip could be perforated or closed. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8312 temperature sensor

TE/PT-8312 temperature sensor

Temperature sensor with a  2- or 3-pole standard connector. Diameter of the protection tube in metric or inch size available. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8313 temperature sensor

TE/PT-8313 temperature sensor

Temperature sensor with a miniature connection head. Protection tube could be produced in different dimensions. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8314 temperature sensor

TE/PT-8314 temperature sensor

Temperature sensor with a 2- till 8-pole connector with gold plated contacts. Length and diameter to be discussed. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8315 temperature sensor

TE/PT-8315 temperature sensor

Temperature sensor with fixed cable and reduced tip. Dimensions on customer specification. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8316 temperature sensor

TE/PT-8316 temperature sensor

Temperature sensor with fixed cable and reduced tip. Dimensions on customer specification. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8317 temperature sensor

TE/PT-8317 temperature sensor

Temperature sensor with flanged and/or barstock thermowell in various combinations (also ATEX approved). Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8318 temperature sensor

TE/PT-8318 temperature sensor

Temperature sensor with FORM BUS-head, process connection as desired, reduced tip and neck. Assembly suitable for resistance thermometers as well as thermocouples.

TE-8319 temperature sensor

TE-8319 temperature sensor

"Tube-Temp" temperature sensor for measuring the temperature of tubes with a special "Knife-edge" thermojunction. Assembly suitable only for thermocouples.

TE/PT-8320 temperature sensor

TE/PT-8320 temperature sensor

Temperature sensor with Form BUZ-head, process connection as desired, perforated tip and neck suitable flow temperature measurement. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8321 temperature sensor

TE/PT-8321 temperature sensor

Temperature sensor with bronze connection box (for cold storage rooms) and perforated tip. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8322 temperature sensor

TE/PT-8322 temperature sensor

Temperature sensor with neoprene housing and cable for cold storage applications. Assemly suitable for only resistance thermometers (high accuracy).

TE/PT-8323 temperature sensor

TE/PT-8323 temperature sensor

Robust insertion temperature sensor with chisel point tip for meat and (deep) frozen products. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8324 temperature sensor

TE/PT-8324 temperature sensor

Screw-in temperature sensor with fixed cable and a process connection as desired. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8325 temperature sensor

TE/PT-8325 temperature sensor

Spring loaded measuring insert with transmitter (output 4 - 20 mA, 0 - 10 V or other). Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8326 temperature sensor

TE/PT-8326 temperature sensor

Spring loaded measuring insert suitable for mounting a transmitter. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8327 temperature sensor

TE/PT-8327 temperature sensor

Temperature sensor with 2 x 1/2"NPT connection. Also spring loaded version available. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8328 temperature sensor

TE/PT-8328 temperature sensor

Temperature sensor for pipe wall measurement with fixed cable. Housing made of brass, stainless steel, copper or aluminium. Dimensions as desired and radius optional. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8329 temperature sensor

TE/PT-8329 temperature sensor


Springloaded temperature sensor with bajonet connection and fixed cable. Often used in the plastic industry. Also available with bore point tip. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8330 temperature sensor

TE/PT-8330 temperature sensor


Temperature sensor with fixed cable. Dimensions and cable as desired. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8331 temperature sensor

TE/PT-8331 temperature sensor


Temperature sensor with a right angle and fixed cable. Dimensions as desired. Assembly suitable for resistance thermometers as well as thermocouples.

TE/PT-8332 temperature sensor

TE/PT-8332 temperature sensor


Room temperature sensor suitable for wall mounting. Also available with transmitter. Assembly suitable for resistance thermometers as well as thermocouples.

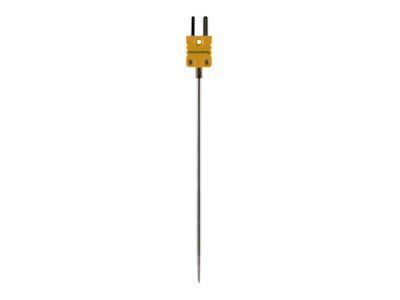

Type X1 miniature temperature sensor

Type X1 - surface


Miniature temperature sensor for surface measurement. Assembly suitable only for thermocouples.

Type X2/P2 miniature temperature sensor

Type X2/P2 - insertion

Miniature temperature sensor for insertion measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Type X3/P3 miniature temperature sensor

Type X3/P3 - immersion

Miniature temperature sensor for immersion measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Type X4/P4 miniature temperature sensor

Type X4/P4 - immersion


Miniature temperature sensor for fast response immersion measurement.  Assembly suitable for resistance thermometers as well as thermocouples.

Type X5/P5 miniature temperature sensor

Type X5/P5 - air/gas


Miniature temperature sensor for air/gas measurement.  Assembly suitable for resistance thermometers as well as thermocouples.

Type X6 miniature temperature sensor

Type X6 - insertion

Miniature temperature sensor for fast response insertion measurement. Assembly suitable only for thermocouples.

Type X7/P7 miniature temperature sensor

Type X7/P7 - surface


Miniature temperature sensor with mounting clips for surface measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Type X8 miniature temperature sensor

Type X8 - soldertip

Miniature temperature sensor for soldertip measurement.  Assembly suitable only for thermocouples.

Type X9 miniature temperature sensor

Type X9 - surface

Miniature temperature sensor with magnet for surface measurement.  Assembly suitable only for thermocouples.

Type X10 miniature temperature sensor

Type X10 - various

Miniature temperature sensor with 1000 mm thermocouple for various measurements. Assembly suitable only for thermocouples.

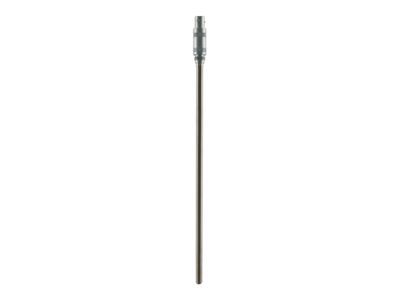

MTK-1/MPT-1 mineral insulated sensor

MTK-1/MPT-1 mineral insulated sensor

Mineral insulated sensor with temporary seal. Assembly suitable for resistance thermometers as well as thermocouples.

MTK-2/MPT-2 mineral insulated sensor

MTK-2/MPT-2 mineral insulated sensor


Mineral insulated sensor with SS-potseal and insulated leads. Assembly suitable for resistance thermometers as well as thermocouples.

MTK-3/MPT-3 mineral insulated sensor

MTK-3/MPT-3 mineral insulated sensor


Mineral insulated sensor with mini-plug. Assembly suitable for resistance thermometers as well as thermocouples.

MTK-4/MPT-4 mineral insulated sensor

MTK-4/MPT-4 mineral insulated sensor


Mineral insulated sensor with Form MA-head and 2, 3 or 4 connections. Assembly suitable for resistance thermometers as well as thermocouples.

MTK-5/MPT-5 mineral insulated sensor

MTK-5/MPT-5 mineral insulated sensor


Mineral insulated sensor with 2, 3, 4, 6 or 8 pole connector plug. Assembly suitable for resistance thermometers as well as thermocouples.

MTK-6/MPT-6 mineral insulated sensor

MTK-6/MPT-6 mineral insulated sensor


Mineral insulated sensor with transition fitting and fixed cable. Assembly suitable for resistance thermometers as well as thermocouples.

MTK-7/MPT-7 mineral insulated sensor

MTK-7/MPT-7 mineral insulated sensor


Mineral insulated sensor with standard plug. Assembly suitable for resistance thermometers as well as thermocouples.

MTK-8/MPT-8 mineral insulated sensor

MTK-8/MPT-8 mineral insulated sensor


Mineral insulated ‘pad-type’ sensor suitable for pipe-wall measurements. Assembly suitable for resistance thermometers as well as thermocouples.

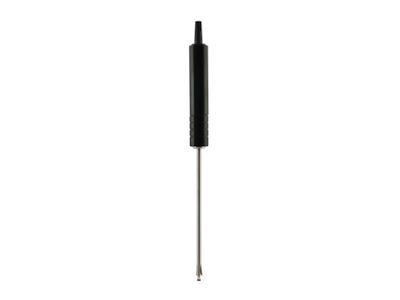

Type X11/P11 handheld temperature sensor

Type X11/P11 - surface

Handheld temperature sensor with spring-loaded tip for surface measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Type X12/P12 handheld temperature sensor

Type X12/P12 - insertion


Handheld temperature sensor with chisel end tip for insertion measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Type X12A handheld temperature sensor

Type X12A - insertion

Handheld temperature sensor for fast response insertion measurement. Assembly suitable only for thermocouples.

Type X13/P13 handheld temperature sensor

Type X13/P13 - immersion


Handheld temperature sensor for immersion measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Type X13A handheld temperature sensor

Type X13A - immersion


Handheld temperature sensor for fast response immersion measurement.  Assembly suitable for resistance thermometers as well as thermocouples.

Type X14 handheld temperature sensor

Type X14 - surface


Handheld temperature sensor with spring loaded tip for surface measurement. Assembly suitable only for thermocouples.

Type X15/P15 handheld temperature sensor

Type X15/P15 - air/gas

Handheld temperature sensor with perforated tip for air/gas measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Type X16/P16 handheld temperature sensor

Type X16/P16 - surface


Handheld temperature sensor for surface measurement. Assembly suitable only for thermocouples.

Type X17 handheld temperature sensor

Type X17 - surface

Handheld temperature sensor for fast response surface measurement. Assembly suitable only for thermocouples.

Type X18 handheld temperature sensor

Type X18 - surface


Low mass handheld temperature sensor for surface measurement. Assembly suitable only for thermocouples.

Type X19/P19 handheld temperature sensor

Type X19/P19 - surface


Handheld temperature sensor for moving surface measurement.  Assembly suitable for resistance thermometers as well as thermocouples.

Type X20/P20 handheld temperature sensor

Type X20/P20 - insertion


Handheld temperature sensor with pointed tip for insertion measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Type X21 handheld temperature sensor

Type X21 - immersion


Long, handheld temperature sensor for immersion measurement. Assembly suitable only for thermocouples.

Type X22/P22 handheld temperature sensor

Type X22/P22 - insertion

Heavy duty, handheld temperature sensor for insertion measurement. Assembly suitable for resistance thermometers as well as thermocouples.

Type X23 handheld temperature sensor

Type X23 - molten metal


Long, handheld temperature sensor for molten metal measurement. Assembly suitable only for thermocouples.

Type X24 handheld temperature sensor

Type X24 - insertion or immersion


Handheld temperature sensor for insertion or immersion measurement. Assembly suitable only for thermocouples.

Type X25 handheld temperature sensor

Type X25 - surface


Handheld temperature sensor with ribbon thermocouple for surface measurement. Assembly suitable only for thermocouples.

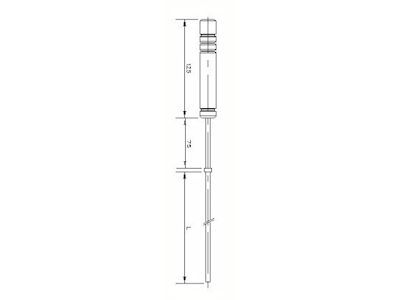

P250 industrial standards thermometer

P250 - general purpose


The P250 general purpose Industrial Standards Thermometers was designed for very accurate temperature measurements within -100 °C up to +450 °C operating temperature.

P250-HTQ industrial standards thermometer

P250-HTQ - high temperature

The P250-HTQ high temperature Industrial Standards Thermometers was designed for highly accurate temperature measurements within -50 °C up to +720 °C operating temperature.

Compression glands

Compression glands


Compression glands are pressure tight process connections for thermocouples as well as resistance thermometers. The immersion length of the temperature sensor can easily be adjusted. Next to a pressure tight gland with stainless steel ring for one-time installation, glands are available with Teflon (Max. 250ºC), Neoprene (Max. 100ºC) or Lava (Max. 540ºC) sealing rings.

Compression glands can be supplied in Stainless steel, Brass or Steel. Please contact our sales department for more information.

Connection heads and ceramic blocks

Connection heads and ceramic blocks


Tempcontrol offers a wide range of connection heads and ceramic blocks. Please contact our sales department for more information.

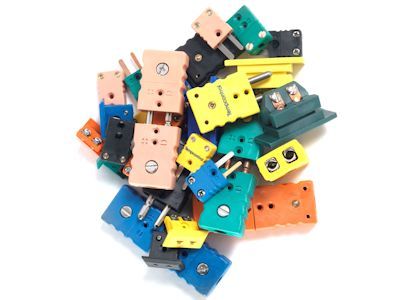

Connectors

Connectors for thermocouples and resistance thermometers

Connectors for thermocouples are internationally standardized and constructed of original or compensating thermocouple material. The connectors can be supplied as a miniature with flat pins or as standard with round pins, hollow as well as solid. Also panels with any quantity of jacks can be supplied.
Connectors for resistance thermometers are available in all kind of shapes and pins. Pins can be constructed out of copper, silver- or gold plated.

Tempcontrol keeps a wide range of various thermocouple- and resistance thermometer connectors in stock. For more information please contact our sales department.

Form D

Thermowell Form D


Weld-in thermowell according to DIN 43763 Form D1 thru D6.

Materials:
Werkstoff Nr. 1.7335
Werkstoff Nr. 1.7380
Werkstoff Nr. 1.4571
Werkstoff Nr. 1.4541

Form TWFDIN

Thermowell Form TWFDIN


DIN type Form 1, 2 or 3 with flange DN25 PN40.
Diameter Ø 12/9 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum etc.

Options:
All kinds of coatings, certificates, tests etc.

Form TWFRE

Thermowell Form TWFRE


Straight construction with reduced tip and flange to be specified.
Diameter Ø 25/13 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum etc.

Options:
All kinds of coatings, certificates, tests etc.

Form TWFST

Thermowell Form TWFST


Straight construction with flange to be specified.
Diameter Ø 19 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum etc.

Options:
All kinds of coatings, certificates, tests etc.

Form TWFTA

Thermowell Form TWFTA


Tapered construction with flange to be specified.
Diameter Ø 25/19 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum etc.

Options:
All kinds of coatings, certificates, tests etc.

Form TWLA

Thermowell Form TWLA


Thermowell with extended hexagon.
Construction straight or tapered.
Process connection 1/2", 3/4" or 1" NPT / BSP / BSPT.
Diameter Ø 12, 16 or 20 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum.

Options:
All kinds of coatings, certificates, tests etc.

Form TWTA

Thermowell Form TWTA


Tapered construction, welded or bar stock.
Process connection 1/2", 3/4" or 1" NPT / BSPP / BSPT.
Diameter Ø 18/12 mm, Ø 22/16 mm or Ø 27/20 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum.

Options:
All kinds of coatings, certificates, tests etc.

Form TWST

Thermowell Form TWST


Straight construction, welded or bar stock.
Process connection 1/2", 3/4" or 1" NPT / BSPP / BSPT.
Diameter Ø 18, 19 or 20 mm, optional with reduced tip Ø 13 x 60 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum.

Options:
All kinds of coatings, certificates, tests etc.

Novasens - Infrared sensor IR501

Novasens - Infrared sensor IR501


• Detection of larger measuring areas by the ratio distance / spot size 1:1
• Robust and inured sensor housing
• 3 m sensor cable, extendable up to 40 m
• Very small and compact design for installation in confined space

Novasens - Infrared sensor IR501AC

Novasens - Infrared sensor IR501AC

• Detection of larger measuring areas by the ratio distance / spot size 1:1
• Connection for compressed air supply for air cooling and lens cleaning
• Robust and inured sensor housing
• 3 m sensor cable, extendable up to 40 m
• Very small and compact design for installation in confined spaces

Novasens - Infrared sensor IR502G

Novasens - Infrared sensor IR502G

• Detection of small measurement spots over large measuring distances
• Quality, moisture-resistant germanium optics
• 3 m sensor cable, extendable up to 40 m
• Robust and inured sensor housing
• Compact design

Novasens - Infrared sensor IR502GAC

Novasens - Infrared sensor IR502GAC


• Robust sensor for use in very hot or dirty environments
• Connection for compressed air supply for air cooling and lens cleaning
• Detection of small measurement spots over large measuring distances
• Quality, moisture-resistant germanium optics
• 3 m sensor cable, extendable up to 40 m
• Compact design

Novasens - Infrared sensor IR502GACV40

Novasens - Infrared sensor IR502GACV40


• Robust sensor for use in very hot or dirty environments
• Connection for compressed air supply for air cooling and lens cleaning
• 40 mm additional tube against contemination and interference
• Detection of small measurement spots over large measuring distances
• Quality, moisture-resistant germanium optics
• 3 m sensor cable, extendable up to 40 m

TS2 Fiber optic temperature sensor - COMEM

TS2 Fiber optic temperature sensor - COMEM


The fiber optic temperature probe TS2 was designed for a wide range of applications, especially for the use inside of generators, power transformers as well as bus bars, R&D and industrial applications.

It offers complete immunity  to RFI, EMI, NMR and microwave radiation – the best choice for all challenges.

The standard temperature sensor TS2 has a response time of 2s. With an standard deviation* of ±0.2°C it allows precise and repeatable measurements. The coating of TS2 temperature sensor is made of PTFE, the fiber tip has a diameter of 1.0mm and has a serial ST-connector. For mechanical stability and applications e.g. in oil special protective coatings and hoses are available.

The fiber optic probe TS2 consists of a PTFE protected glass fiber and a GaAs-Crystal (Galliumarsenid) at the sensor tip. It is totally free of metal and immune to RFI, EMI, NMR and microwave radiation – therefore TS2 probes are explicit suitable for the use in high temperature ranges (-200°C to +300°C) as well as in aggressive and rough test environments.

All fiber optical temperature sensors can be connected to the fiber optic temperature measurement devices (FOTEMP), delivers accurate and complete reliable, stable and repeatable values. Starting at a light wave length of 850nm GaAs becomes optical translucent. Since the position of the band gap is temperature dependent, it shifts about 0.4nm/Kelvin.

The sensor cable can be up to several meters and kilometers long without influencing the accuracy of the measurement result. Other sensor lengths and connector types are available upon request.

TS3 Fiber optic temperature sensor - Comem

TS3 Fiber optic temperature sensor - COMEM


The fiber optic temperature probe TS3 stands for expanded flexibility with usual COMEM quality and is the best choice for application in RFI, EMI, NMR and microwave environments.

The fiber optic sensor TS3 guarantees exact temperature measurements within a range of -200°C to +300°C at a standard deviation* of ±0.2°C.  The jacket of the TS3 temperature probe consists completely of PTFE and ensures immunity to RFI, EMI, NMR and microwave radiation.

Unlike the  fiber optic sensor TS2, the T3 comes with the possibility of a customizable length of the probe tip from 10mm to 130mm. Thanks to their fast response time of 2s and a maximum diameter of 1.7mm the TS3 temperature probe is small enough to fit in even the thinnest openings inside a measurement environment to deliver reliable data in real time.

All fiber optical temperature sensors can be connected to the fiber optic temperature measurement devices (FOTEMP), delivers accurate and complete reliable, stable and repeatable values. Starting at a light wave length of 850nm GaAs becomes optical translucent. Since the position of the band gap is temperature dependent, it shifts about 0.4nm/Kelvin.

TS4 Fiber optic temperature sensor - COMEM

TS4 Fiber optic temperature sensor - COMEM


The fiber optic temperature probe TS4 is especially designed for the use in chemical aggressive and nuclear environments.Its increased resistance comes with no loss in accuracy and the temperature range. Its PTFE-jacket results in a complete immunity to RFI, EMI, NMR and microwave radiation. The temperature sensor guarantees a measuring range from -200°C to +200°C with a standard deviation* of ±0.2°C. The fiber optic temperature probe is completely non-conductive.

Thanks to its special protection the TS4 probe resists even high aggressive chemical concentrations inside the measurement environment – with a maximum diameter of 2mm.

All fiber optic temperature sensors can be connected to the fiber optic temperature measurement devices (FOTEMP), delivers accurate and complete reliable, stable and repeatable values. Starting at a light wave length of 850nm GaAs becomes optical translucent. Since the position of the band gap is temperature dependent, it shifts about 0.4nm/Kelvin.

The sensor cable can be up to several meters and kilometers long without influencing the accuracy of the measurement result.

Optical feedthrough - COMEM

The optical feedthroughs are specifically designed for installation on tank walls and oil transformers. They have a leak-proof interface and require no maintenance.

On both sides there are standard ST connector. There are no moving parts or loose optical cables. It is best combined with the temperature sensor TS2 and FOTEMP4, four-channel temperature signal conditioner.

90° fiber adapter - COMEM

The 90° fiber adapter was designed specifically for the use in plant engineering and construction, but can also be used in areas with small space and requirements for small sizes. Technical modification in accordance with customer requirements for fiber diameter and fiber type are possible.

Extension cable - COMEM

For measurement projects with larger distances we offer our fiber optic extension cable with a diameter of 1.3mm (PTFE) or 3mm (PVC). The cable sheath can vary depending on customer requirements.

Bus bar adapter - COMEM

The bus bar adapter is used to attach the fiber optic sensor to bus bars. The ceramic design makes the adapter very resistant to mechanical stress and it also acts as a thermal insulator against possible external heat influences.

COMEM

Spiral wrap - COMEM

To protect the fiber optic temperature sensor and extension cables against mechanical stress, we offer a special spiral wrap.

Metal protective wrap - COMEM

The metal protective hose is made of a spiral-wound stainless steel tube. Due to his construction he is extremely robust and corrosion resistant. Therefore he provides to our fiber optic sensors a comprehensive protection at temperatures from -100°C to +200°C.

The protective tube is due to his small outer diameter of only 5mm very flexible. He is well-suited for any applications in the medical, pharmaceutical or industrial areas.

• High flexibility
• High tensile strength (500N)
• Crush-resistant (750N)
• Rotationally fixed
• Light and liquid tight

TS5 Fiber optic temperature sensor - COMEM

TS5 Fiber optic temperature sensor - COMEM

The fiber optic temperature probe TS5 combines high resistance with a minimal probe diameter – especially suitable for catheter applications within a modern animal health technology setup.

The fiber optic probe TS5 provides measurement data at the speed of light with a response time of 2s and a standard deviation* of ±0.2°C. The sensor tip with GaAs-Crystal (gallium arsenide) comes with a diameter of 0.55mm being the thinnest fiber optic temperature probe of the Optocon product line. Moreover TS5 offers a variable length from 10mm to 600mm. The small size of the TS5 temperature sensor enable for the usage in medical applications, e.g. animal body temperature monitoring – the needed requirements on flexibility are completely guaranteed.

Through its PTFE jacket it is completely immune to RFI, EMI, NMR and microwave radiation. All fiber optic temperature sensors can be connected to the fiber optic temperature measurement devices (FOTEMP) and provide accurate, reliable and repeatable data.

The sensor cable can be up to several meters and kilometers long without influencing the accuracy of the measurement result. Other sensor lengths and connector types are available upon request.

Silicon protective wrap - COMEM

To protect the fiber optic sensor in industrial applications, we offer this specially coated stainless steel with silicone protective sleeve. This is particularly distinguished by its high flexibility, tensile strength, and its transverse compressive strength.

Because of his light and fluid leaks the measurement result is not distorted by external influences. The protective sleeve is composed of a flat wire coil with glass fiber braid and an outer silicone jacket. The outer diameter is barely 5.6 mm. Due to the large temperature range of -60°C to +180°C results in a wide range of applications.

• High flexibility
• High tensile strength
• Crush resistant
• Rotationally fixed
• Light and liquid tight

Power supply - COMEM

To secure electricity supply for our fiber optic temperature measurement device we recommend you our matching power cable.

COMEM


Cleaning set - COMEM

To ensure accurate measurements and long life of our fiber optic sensors and instruments, it isnecessary to clean them regularly. Failure to do so can result in permanent damage to the connector caused by hard particles trapped between the fiber optic end faces. Use our high quality cleaning set for thorough and efficient plug and socket cleaning. It removes dust and dirt particles quickly and easily. We recommend regular cleaning, depending on instrument usage.

Tank wall plate - COMEM

The tank wall plate can easily be mounted with screws or by welding. This leak-proof tank wall plate ensures a convenient and easy installation of the fiber optic feedthroughs and sensors.

1-18 feedthroughs can be installed on one plate. Compatible fiber optic sensors, are also available on request.
Layout and design of the plate is according to customer requirements.

• Easy to install
• Long-term functionality
• Leak proof
• Stainless steel
• 1-18 optical feedthroughs possible
• Compatible with all our optical feedthroughs
• Fast access to the fiber optic sensors

Tank wall plate cover - COMEM

COMEMs tank wall plate cover is specially designed for an easy and safe installation on the tank wall plate.

The sensors are protected optimally from the harsh conditions and mechanical effects, guaranteeing a precise temperature measurement.

The removable lid allows an easy installtion of the sensors on the tank wall plate.
The compact size and the installation for a protective tube ensures a neat and safe connection to evaluation unit.

• Easy to install
• Cost-effective and elegant solution
• Safe and quick connection to the fiber optic temperature sensors
• Compatible with all our plates
• Avoid damage to the sensors and allows precise temperature measurement

Novasens - Infrared sensor IR702

Infrared sensor IR702 - Novasens

The strength of the IR702 pyrometer lies in its non-contact temperature measurement of metal surfaces, iron and steel in the low temperature range.

• Easy to integrate and set up in your machine and application
• Robust, compact sensor housing
• Digital interface and analogue output
• Accurate detection of your measurement object
• Non-contact temperature measurement for various applications

Novasens - Infrared sensor IR602

Infrared sensor IR602 - Novasens

This infrared temperature sensor is ideal for non-contact temperature measurement in the food industry.
Protection class IP69K means that the sensor is resistant in all production processes with high humidity or wet cleaning processes. Its housing made of V4A stainless steel is extremely resistant and kept in a hygienic design. Due to its robustness, the sensor is also suitable for use in petrochemical industry.

The IR602AC features a compressed air lens cleaning function. This prevents the lens from becoming dirty, which could affect the measurement result. Ideally suited for areas where dust particles or mist are present.

Novasens - Infrared sensor IR402

Infrared sensor IR402 - Novasens

This infrared temperature sensor measures temperatures from -20 °C to 250 °C without contact and is equipped with a type J or K thermocouple output.
This output range is compatible with almost any machine control unit, PIB controller, display device and data logger that has a thermocouple input.

The sensor is suitable for non-contact temperature measurement of materials such as foodstuffs, paper, textiles, plastics, leather, chemicals, rubber, coal and asphalt.
The sensor is also suitable for replacing previous sliding contact sensors and PT measuring sensors and for use in OEM applications or for multi-point measurements.

• High-quality, cost-effective sensor for OEM applications
• Accurate germanium optics
• Type J or K thermocouple output
• Robust stainless steel sensor housing
• Compact design thanks to integrated electronics in the sensor housing
• Low power supply: 6 – 24 VDC and 25 mA

Thermocouple wire and compensation wires

Thermocouple wire and cable

Thermocouple wire and cable is available with solid cores, in bare or insulated versions, and can be fitted with:

• PVC
• Nylon
• Teflon
• Silicone
• Kapton
• Glass fibre
• Ceramic fibre insulation.

Thermocouple extension cable and compensation cable
Insulated thermocouple extension cable is constructed from solid (M) or Litze (L) conductors with the same composition as the alloys of the thermocouple pair. The conductors of compensation cable consist of alloys with a composition different from that of the thermocouple pair, but with an almost identical thermoelectric voltage over a limited temperature range.

For electrostatic or mechanical protection, the cable can be fitted with aluminium foil plus earth wire (A), copper braiding (Cu) or stainless steel wire braiding (R).
