Infrared sensor IR602 - Novasens

This infrared temperature sensor is ideal for non-contact temperature measurement in the food industry.
Protection class IP69K means that the sensor is resistant in all production processes with high humidity or wet cleaning processes. Its housing made of V4A stainless steel is extremely resistant and kept in a hygienic design. Due to its robustness, the sensor is also suitable for use in petrochemical industry.

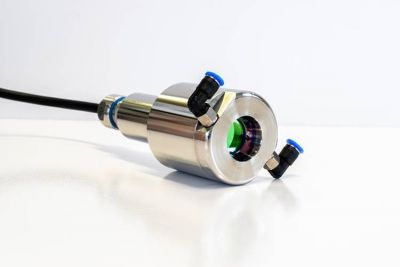

The IR602AC features a compressed air lens cleaning function. This prevents the lens from becoming dirty, which could affect the measurement result. Ideally suited for areas where dust particles or mist are present.

Technical specifications

Distance  to measuring point: 100 mm:10 mm - 50 mm:8 mm - 1:1
Measuring ranges 0-30 °C, -10 °C to +60 °C, 0-50 °C, 0°-100 °C, 0°-250 °C, 0°-
500 °C, 0°-1000 °C
Response time 60 ms
Dimensions 83mm (l) x 43mm diameter (without cable gland)
