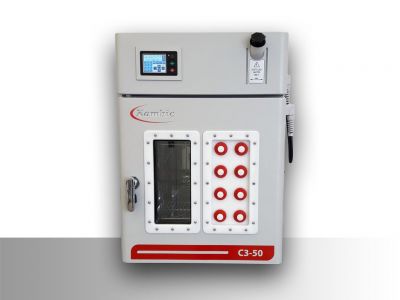

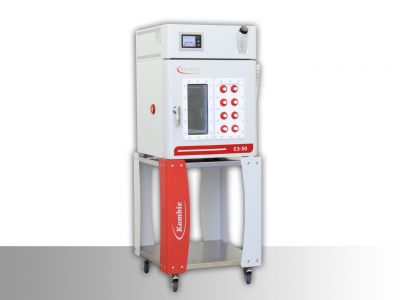

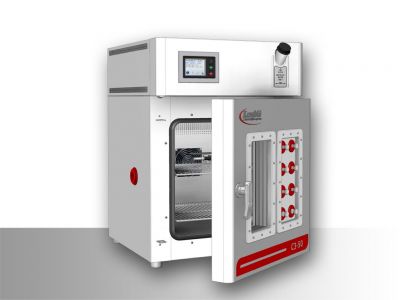

Calibration Climatic Chamber C3-50 - Kambic

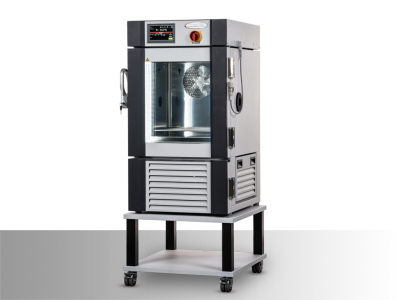

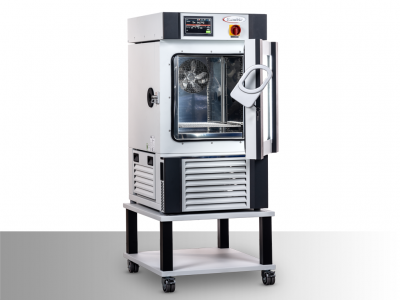

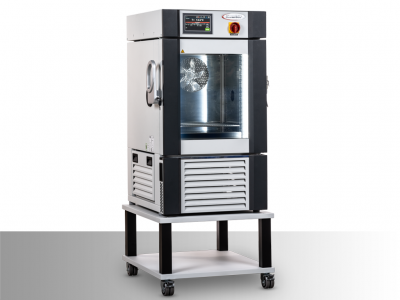

Calibration Climatic Chamber K3-90 - Kambic
Calibration Climatic Chamber Ultra-80 H - Kambic

Superior temperature and humidity control:

  • Perfect for calibration of air temperature and relative humidity sensors
  • Convenient front access, side access for cables and probes
  • Stable, silent, vibration free climatic conditions
  • Superior temperature and Rh uniformity
  • Mixed flow humidity control
  • Cascade PID control
  • Temperature control with FAJT (fluid and air jacket technology) (Ultra-80H)

    All Kambič products are compliant with the F-gas regulation with a GWP of less than 150.

Main features

  • Temperature range: +10 ... +55 °C (C3-50), -5°... +60°C (K3-90), -60 °C...+80 °C (Ultra-80H)
  • Temperature display resolution: 0.001 °C (C3-50, Ultra-80H), 0.1 (K3-90)
  • Temperature set resolution: 0.1 °C (C3-50, K3-90), 0.001 (Ultra-80H)
  • Temperature stability: STD 0,02 °C (over 30 min, C3-50), see datasheet for K3-90 and Ultra-80H
  • Temperature uniformity: 0,5 °C (reference to any point in chamber, C3-50), see datasheet for K3-90 and Ultra-80H
  • Relative humidity range: 5 ... 95%
  • Relative humidity display resolution: 0.1 °C
  • Relative humidity set resolution: 0.1 °C
  • Relative humidity stability: ± 0.2 @ 21 °C, 50% Rh (better than ± 0.8 full range) (C3-50, K3-90), ± 0.3 @20 °C, 60% Rh (beter dan ± 0,4 full range) (Ultra-80H)
  • Relative humidity uniformity: less than 2% (full range)
  • Temperature control: cascade PID, PID (PT-100)
