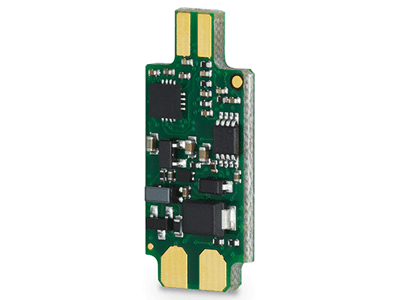

Digital transmitter to be built into own equipment

  • Type: Digital
  • Input: RTD
  • Output: 4-20 mA
  • Isolation: Unisolated
  • Measuring channels: 1 channel

Main features

  • Output: 4…20 mA, temperature linear
  • Sensor element: Pt100, Pt1000
  • Connection: 2-, 3- and 4-wire
  • Max. sensor wire resistance:
    3- and 4-wire connection – 20 ohm/wire
    2-wire connection – max 40 ohm in total
  • Measuring range: -200… +850°C / -328…+1562°F
  • Min. span: 20°C / 36°F
  • Sensor break detection: Upscale / Downscale alarm
  • Sensor short detection: Upscale / Downscale alarm
  • Basic accuracy (PCBA): Max. of ±0.1°C or ±0.1% of span*
  • Temperature drift (PCBA): Max of ±0.01°C/°C or ±0.01%/°C of span
  • Long-term stability: Max of ±0.25°C or ±0.25% of span / 5 year
  • Ambient temperature:
    Operating: –40…+85°C / -40…+185°F
    Storage: –50…+100°C / -58…+212°F
  • Humidity: 0 … 98% RH (non- condensing)
  • Power supply: 5 to 32 VDC
  • Vibration:
    Acc. to IEC60068-2-6, test Fc,
    10-2000Hz, 10g
  • Uncertainty: 2.1uA
  • EMC Acc. to IEC61326-1
