Compression glands

Compression glands

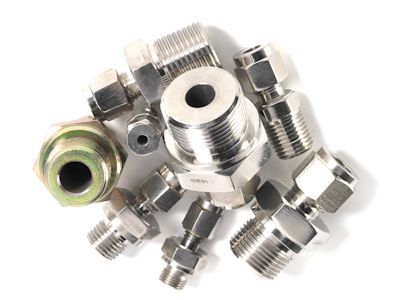

Compression glands are pressure tight process connections for thermocouples as well as resistance thermometers. The immersion length of the temperature sensor can easily be adjusted. Next to a pressure tight gland with stainless steel ring for one-time installation, glands are available with Teflon (Max. 250ºC), Neoprene (Max. 100ºC) or Lava (Max. 540ºC) sealing rings.

Compression glands can be supplied in Stainless steel, Brass or Steel. Please contact our sales department for more information.

Connection heads and ceramic blocks

Connection heads and ceramic blocks

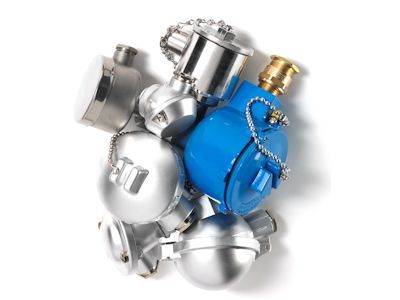

Tempcontrol offers a wide range of connection heads and ceramic blocks. Please contact our sales department for more information.

Connectors

Connectors for thermocouples and resistance thermometers

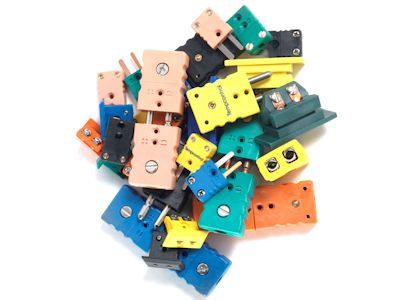

Connectors for thermocouples are internationally standardized and constructed of original or compensating thermocouple material. The connectors can be supplied as a miniature with flat pins or as standard with round pins, hollow as well as solid. Also panels with any quantity of jacks can be supplied.
Connectors for resistance thermometers are available in all kind of shapes and pins. Pins can be constructed out of copper, silver- or gold plated.

Tempcontrol keeps a wide range of various thermocouple- and resistance thermometer connectors in stock. For more information please contact our sales department.

Form D

Thermowell Form D

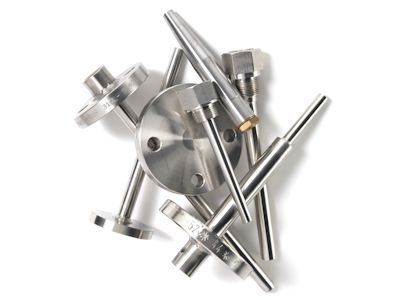

Weld-in thermowell according to DIN 43763 Form D1 thru D6.

Materials:
Werkstoff Nr. 1.7335
Werkstoff Nr. 1.7380
Werkstoff Nr. 1.4571
Werkstoff Nr. 1.4541

Form TWFDIN

Thermowell Form TWFDIN


DIN type Form 1, 2 or 3 with flange DN25 PN40.
Diameter Ø 12/9 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum etc.

Options:
All kinds of coatings, certificates, tests etc.

Form TWFRE

Thermowell Form TWFRE


Straight construction with reduced tip and flange to be specified.
Diameter Ø 25/13 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum etc.

Options:
All kinds of coatings, certificates, tests etc.

Form TWFST

Thermowell Form TWFST


Straight construction with flange to be specified.
Diameter Ø 19 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum etc.

Options:
All kinds of coatings, certificates, tests etc.

Form TWFTA

Thermowell Form TWFTA


Tapered construction with flange to be specified.
Diameter Ø 25/19 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum etc.

Options:
All kinds of coatings, certificates, tests etc.

Form TWLA

Thermowell Form TWLA


Thermowell with extended hexagon.
Construction straight or tapered.
Process connection 1/2", 3/4" or 1" NPT / BSP / BSPT.
Diameter Ø 12, 16 or 20 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum.

Options:
All kinds of coatings, certificates, tests etc.

Form TWTA

Thermowell Form TWTA


Tapered construction, welded or bar stock.
Process connection 1/2", 3/4" or 1" NPT / BSPP / BSPT.
Diameter Ø 18/12 mm, Ø 22/16 mm or Ø 27/20 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum.

Options:
All kinds of coatings, certificates, tests etc.

Form TWST

Thermowell Form TWST


Straight construction, welded or bar stock.
Process connection 1/2", 3/4" or 1" NPT / BSPP / BSPT.
Diameter Ø 18, 19 or 20 mm, optional with reduced tip Ø 13 x 60 mm.

Materials:
All kinds of stainless steel, bronze, inconel, hastelloy, titanium, molybdenum.

Options:
All kinds of coatings, certificates, tests etc.

Thermocouple wire and compensation wires

Thermocouple wire and cable

Thermocouple wire and cable is available with solid cores, in bare or insulated versions, and can be fitted with:

• PVC
• Nylon
• Teflon
• Silicone
• Kapton
• Glass fibre
• Ceramic fibre insulation.

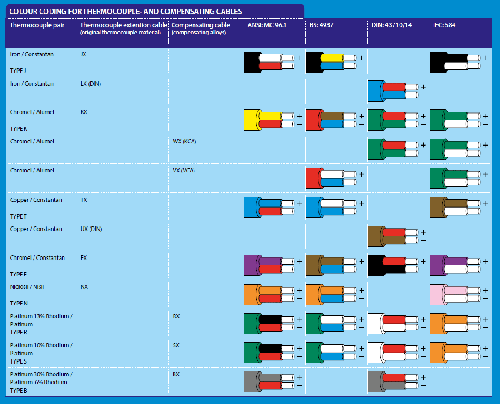

Thermocouple extension cable and compensation cable
Insulated thermocouple extension cable is constructed from solid (M) or Litze (L) conductors with the same composition as the alloys of the thermocouple pair. The conductors of compensation cable consist of alloys with a composition different from that of the thermocouple pair, but with an almost identical thermoelectric voltage over a limited temperature range.

For electrostatic or mechanical protection, the cable can be fitted with aluminium foil plus earth wire (A), copper braiding (Cu) or stainless steel wire braiding (R).
