Pyros - Giussani

Pyros portable block temperature calibrator - Giussani

Pyros portable block temperature calibrator - Giussani


These innovative Giussani Pyros calibrators have been designed for on-site applications and for the severe conditions of the naval and marine sectors. Their ease of use, compact and practical design, make them unbeatable in industrial processes where the verification of the temperature measurement systems is a key issue for the control of the process and the quality of the final product.

Special attention was paid to reduce weight, size and to reinforce robustness by using an aluminium body and aluminium and stainless steel for many internal parts. Each calibrator is tested in our laboratory and calibrated with our measurement samples in accordance with the international standard. At this stage all the functions are checked against reference parameters and a calibration report is issued. The thermal part of these calibrators is made of a metal block heated with resistors or with Peltier thermoelectric modules. In the metal block there are one or more holes in which the interchangeable inserts are placed. The standard inserts available make the calibrators versatile in order to adapt them to the calibration of the temperature sensors with the most common diameters in use. It is also possible to create inserts with special holes upon request.

The equipment provided as standard on each oven includes the power supply cable, the tweezers to extract the inserts, the connection cables of the thermostats, a fuse kit, one or more of the inserts most commonly used, the instructions manual and the calibration report.

Main features

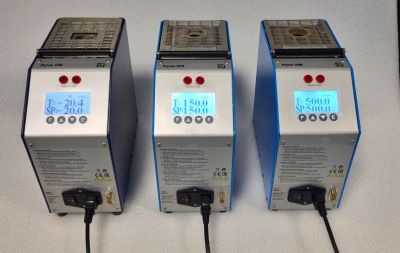

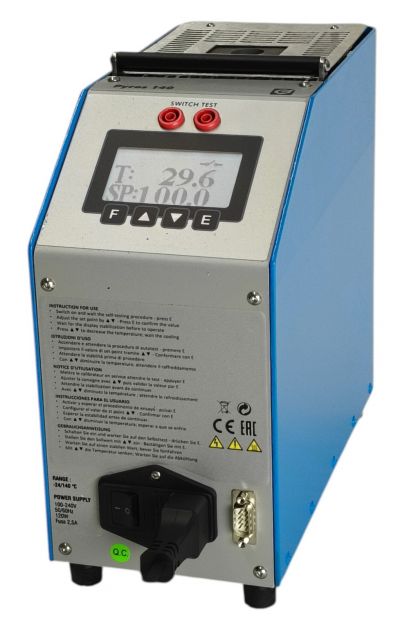

Pyros 140:

  • Temperature range: -24 °C ÷ 140 °C
  • Precision: ±0,25 °C
  • Hole depth: 98 mm
  • Hole diameter: 2 x 13 mm

Pyros 375:

  • Temperature range: 30 °C ÷ 375 °C
  • Precision: ±0,35 °C
  • Hole depth: 150 mm
  • Hole diameter: 26 mm

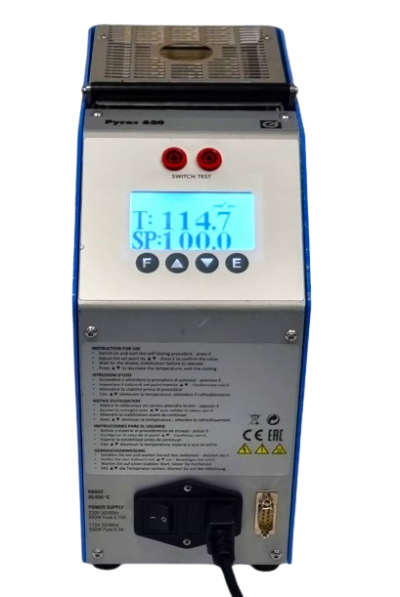

Pyros 650:

  • Temperature range: 35 °C ÷ 650 °C
  • Precision: ±0,50 °C
  • Hole depth: 150 mm
  • Hole diameter: 26 mm
