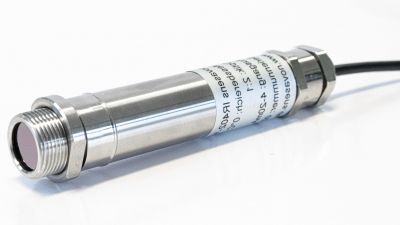

Infrared sensor IR402 - Novasens
This infrared temperature sensor measures temperatures from -20 °C to 250 °C without contact and is equipped with a type J or K thermocouple output.
This output range is compatible with almost any machine control unit, PIB controller, display device and data logger that has a thermocouple input.
The sensor is suitable for non-contact temperature measurement of materials such as foodstuffs, paper, textiles, plastics, leather, chemicals, rubber, coal and asphalt.
The sensor is also suitable for replacing previous sliding contact sensors and PT measuring sensors and for use in OEM applications or for multi-point measurements.
• High-quality, cost-effective sensor for OEM applications
• Accurate germanium optics
• Type J or K thermocouple output
• Robust stainless steel sensor housing
• Compact design thanks to integrated electronics in the sensor housing
• Low power supply: 6 – 24 VDC and 25 mA
