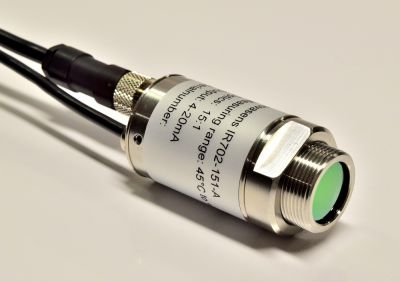

The strength of the IR702 pyrometer lies in its non-contact temperature measurement of metal surfaces, iron and steel in the low temperature range.

Easy to integrate and set up in your machine and application
Robust, compact sensor housing
Digital interface and analogue output
Accurate detection of your measurement object
Non-contact temperature measurement for various applications

Technical specifications

Distance to measuring point: 15:1 - 25:1 - 75:1
Measuring ranges 45 °C-300 °C, 250 °C-1000 °C, 450 °C-2000 °C
Response time 200 ms
Dimensions 61 mm (l) x 28 mm diameter, including cable gland
